PSOC™ Control C3 Arm® Cortex®-M33 MCUs for Advanced Control Applications

Motor Control12 Mar 2025

A worker wearing a high-visibility orange vest is using a tablet to inspect a large orange robotic arm in an industrial factory setting.

The next generation of microcontrollers for motor control and power conversion.

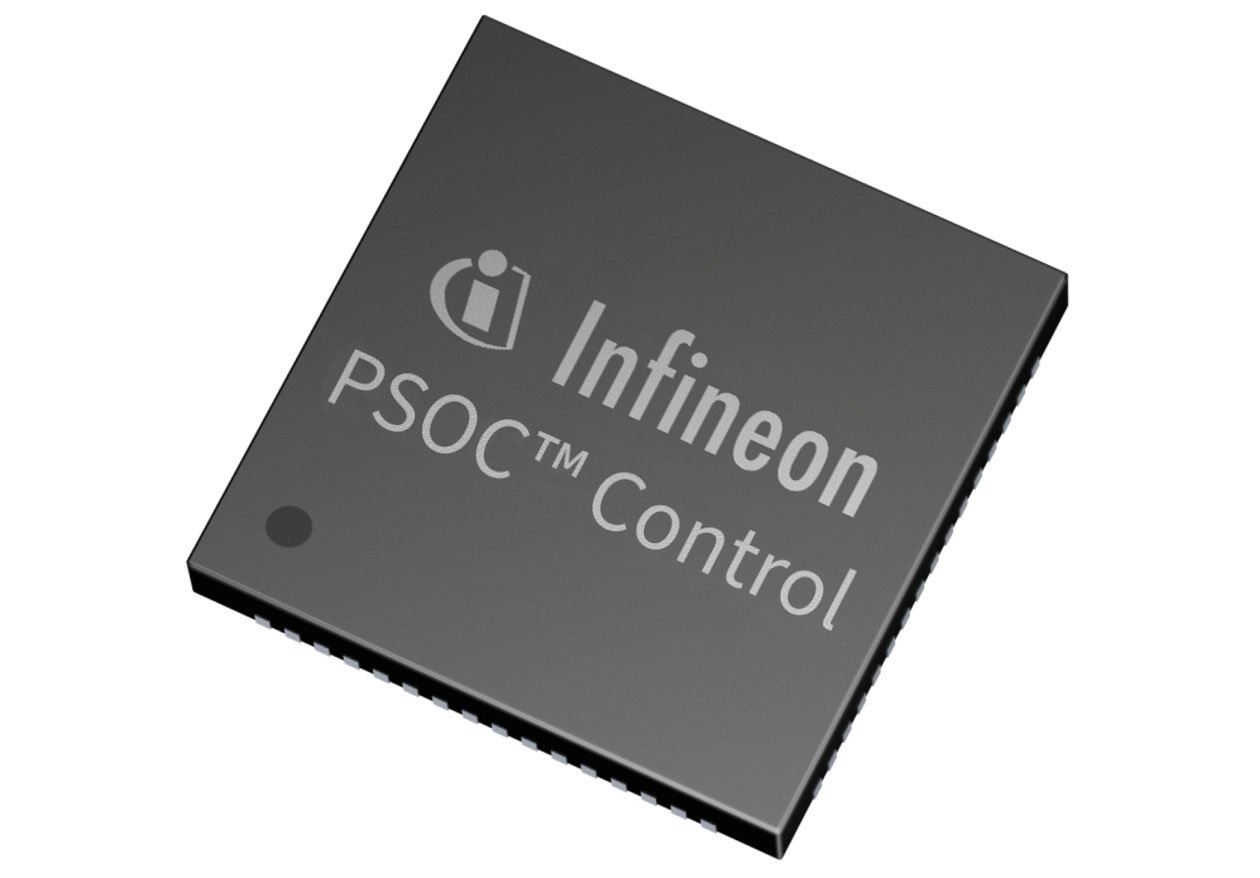

PSOC™ Control C3 family microcontrollers from Infineon are the next generation MCU’s developed specifically for motor control and power conversion applications. This high-performance Arm® Cortex®- M33 microcontroller family enables designers to deliver the market innovations that customers expect from their next-generation devices.

Real-time control of motor and power conversion systems that need to respond to real-time events with minimal delay and low utilization.
Wide bandgap ready for higher system efficiency with unique ADCs to help lower conduction and switching losses.
PSA Certified™ Level 2 for advanced security and safety, with crypto accelerator, TrustZone, and secure key storage for both on-site and cloud-based designs. Class B/SIL 2 safety libraries for critical applications.
Ready-to-use code examples and development tools supported in the ModusToolbox™ software suite.

Features

32-bit MCU subsystems

Up to 180MHz Arm® Cortex®-M33 with DSP and FPU
Up to 256kB read-while-write flash with ECC
Up to 64kB SRAM with ECC
16kB I-Cache
6 power modes including deep sleep and hibernate

High-performance analog

12-bit, 6-MSPS SAR ADC
18 analog channels
5 comparators with built-in 10-bit DAC and slope generator

Real-time control peripherals

16 x 16-bit and 4 x 32-bit TCPWMs
4-channel HRPWM (PSOC Control C3 Mainline MCUs only)
CORDIC math coprocessor

PSA Certified™ Level 2 device security

NIST P256 and TRNG
Cryptography
Secure boot
Secure firmware update
Processing isolation

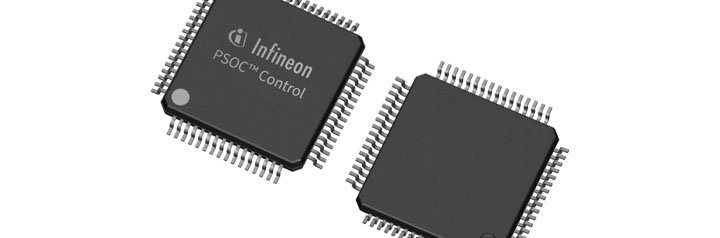

Packages

VQFN-48, E-LQFP-48, VQFN-64, E-LQFP-64
VQFP-80 (PSOC Control C3 Mainline MCUs only)

Whitepaper

Designing Smarter, More Efficient HVAC Systems with PSOC™ Control C3 Whitepaper

The next generation of PSOC™ microcontrollers is optimized for motor control, and features dedicated software support for motor applications.

A sleek HVAC system is displayed outdoors on a concrete base surrounded by grass.

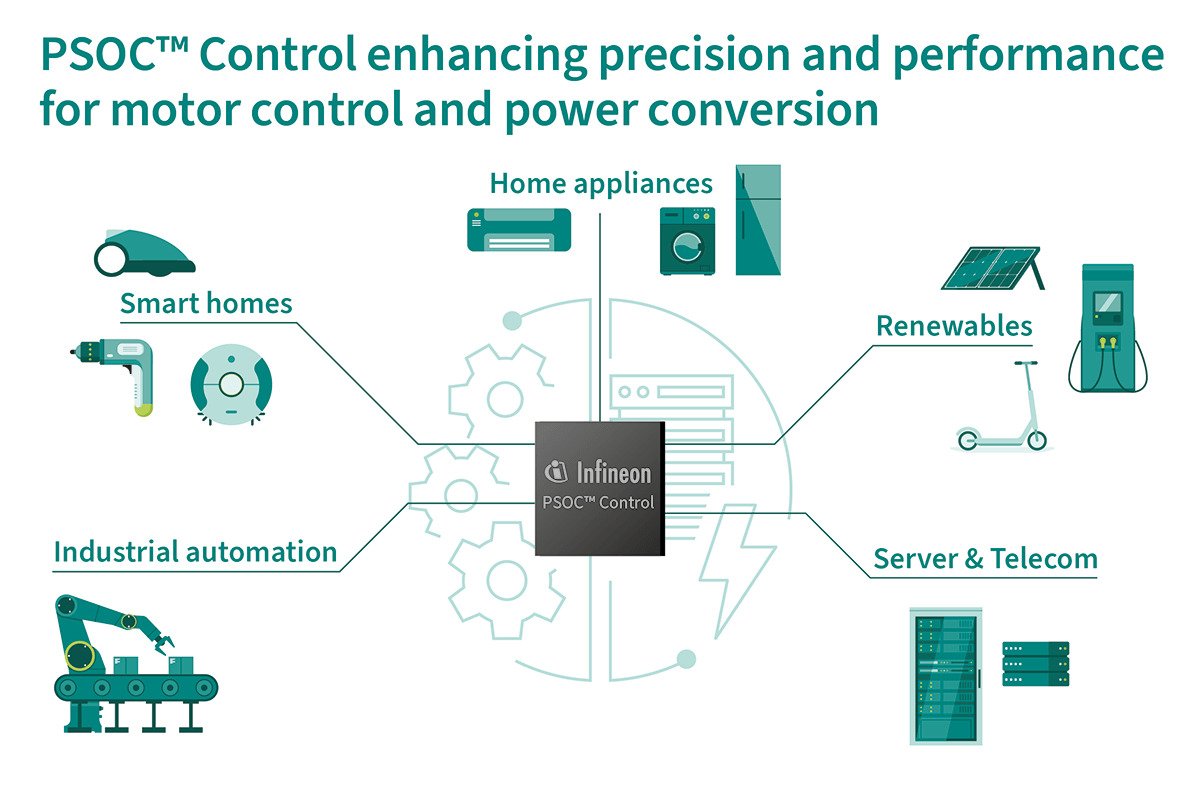

Applications

Smart Home and Home Appliances:

Power and gardening tools
Lawn mower robots
Home robots
Residential aircon ODU
Large and medium home appliances drives

Industrial Motor Control:

General purpose drives
Servo drives
Commercial aircon / HVAC
Robotics

Server & Telecom:

Telecom PSUs
Server PSUs
Workstation PSUs

Renewables:

PV inverters
LEV
EV charging

Software Enablement

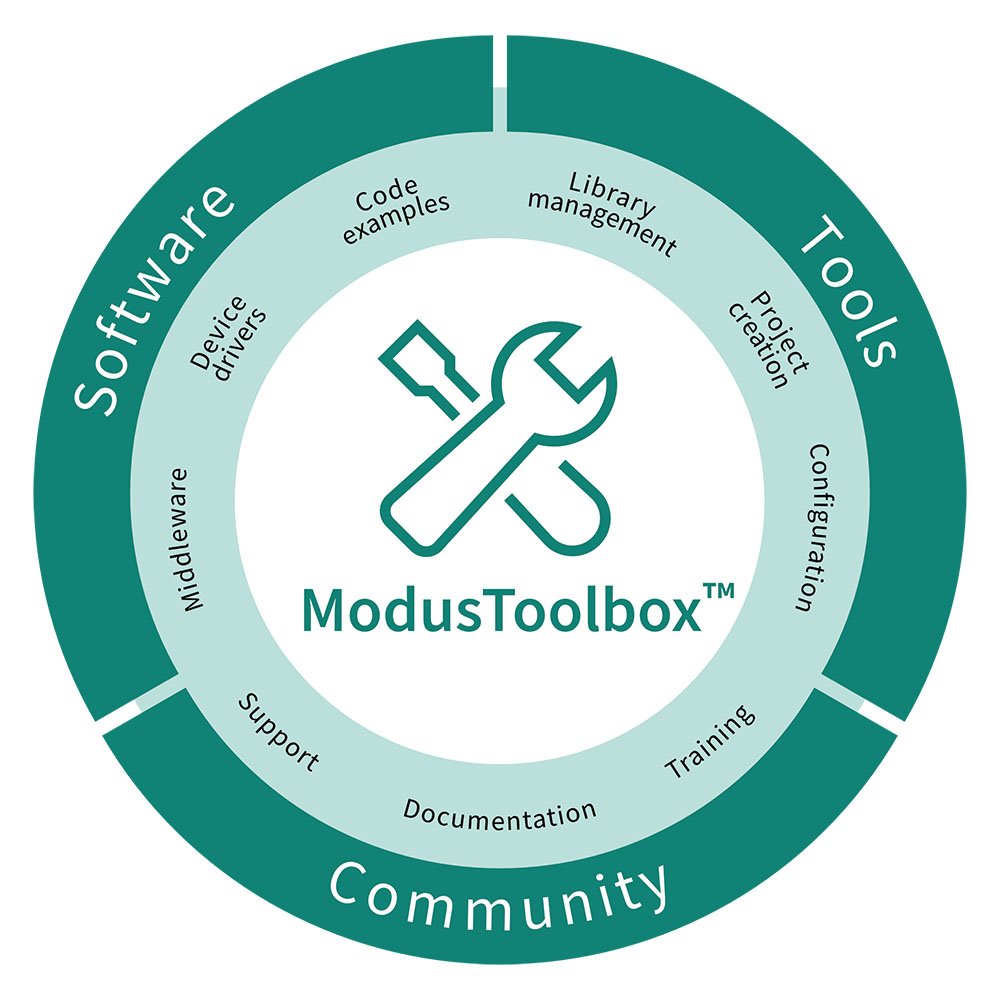

PSOC™ Control is supported in ModusToolbox™ Software, a modern, extensible development ecosystem provided as a collection of development tools, libraries, and embedded runtime assets.

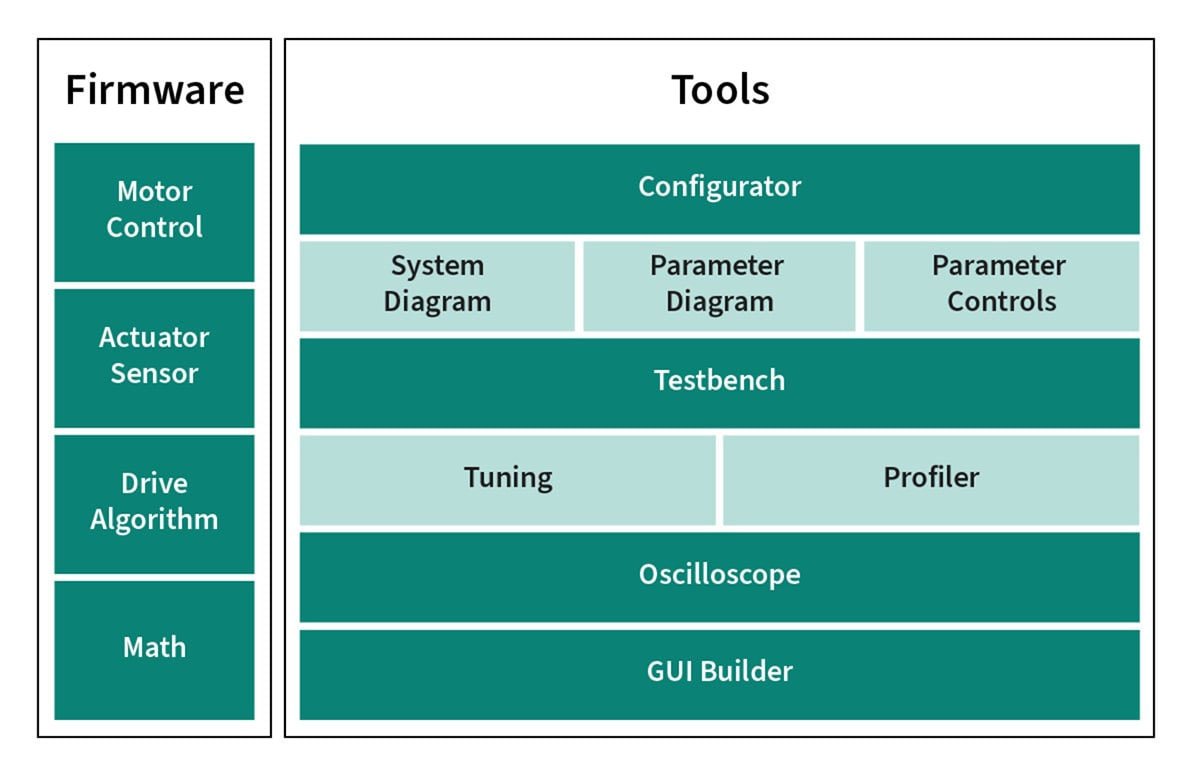

The ModusToolbox™ Industrial technology pack installs the ModusToolbox™ Motor Suite, a comprehensive software solution designed to simplify and accelerate the development of motor control systems. With its intuitive interface and robust features, the Motor Suite provides a seamless experience for engineers and developers to design, test, and optimize motor control applications.
