PHOENIX CONTACT1755752Steckverbinderleisten und Leiterplattenbuchsen
Conn Shrouded Header (4 Sides) HDR 4 POS 5.08mm Solder ST Top Entry Thru-Hole Cardboard
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |

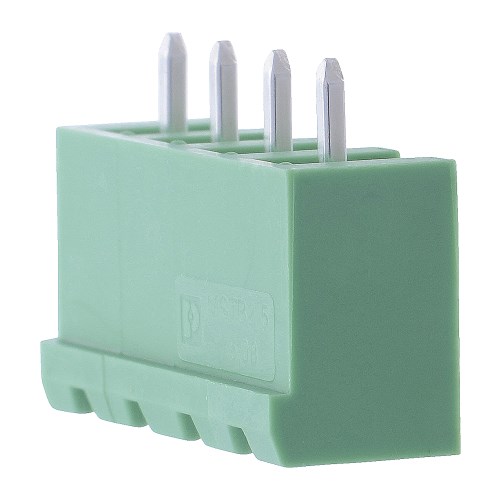

Easily mount this shrouded 1755752 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 4 contacts that are plated with tin. It has a straight body orientation. This is a 1-row connector. Its pitch is 5.08 mm. It has a maximum voltage rating of 250 V@IEC|300V@UL. It has a header type gender. This device has a maximum current rating of 12 A. This product is 22.32 mm long, 12 mm tall and 8.6 mm deep. It uses the solder termination method. 1755752 is housed in green polyamide.
| EDA / CAD Models |
