Arduino CorporationA000096 | LCD Screen Shield

Product Description

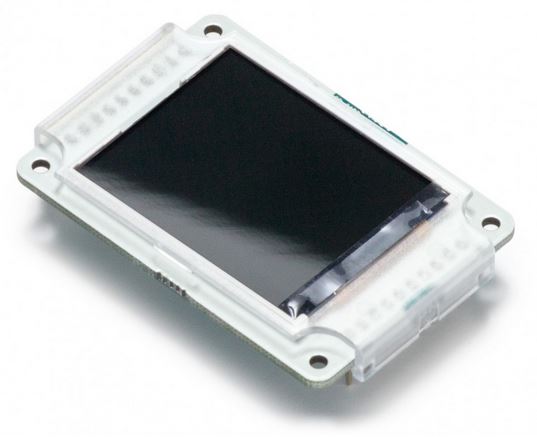

The Arduino TFT screen has a backlit LCD screen with headers and you can draw text, images, and shape to the screen with the TFT library. An onboard micro-SD card slot is on the back of the screen that can store bitmap images for the screen to display. The screen is 1.77" diagonal with 160 x 128 pixel resolution. The screen's headers are designed to fit into the socket on the front of the Arudino Esplora, but is is compatible with any AVVR-based Arduino like the Uno, Leonardo, or Due

Features:

• Draw text, images, and shape to the screen, screen is 1.77" diagonal

• 160 x 128 pixel resolution

• LED backlight is dimmable by PWM

• Screen runs on +5V DC

• Micro-SD slot is accessible thorugh the SD card library
