NXP SemiconductorsIMX8_AI_MLSingle Board Computers - SBCs

Product Description

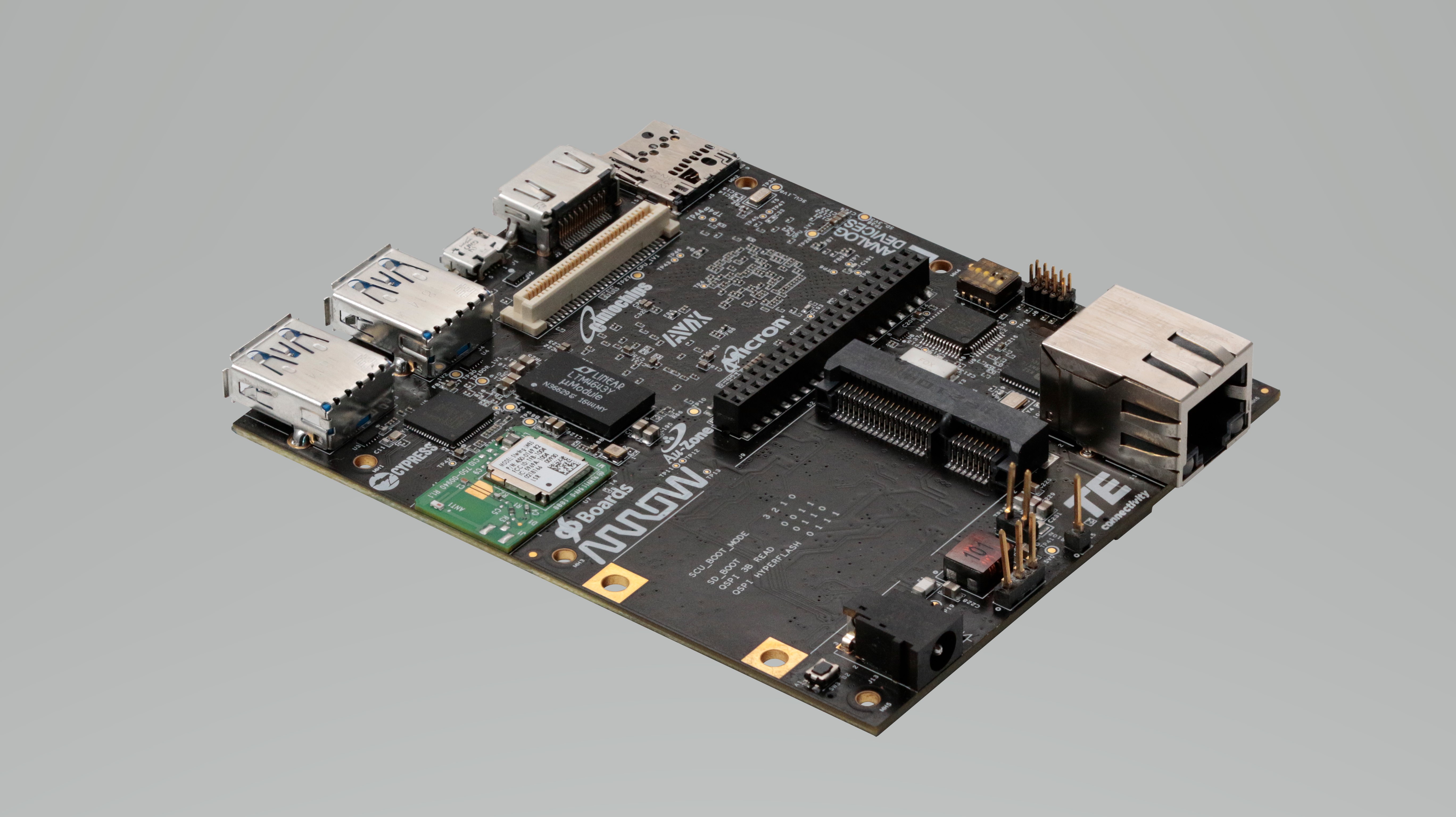

The AI-ML Board is a single-board computer powered by the NXP i.MX 8X SoC, incorporating a quadcore 64-bit Arm-A35, dedicated GPU and VPU, 4K support, Wi-Fi, Bluetooth and a wide range of I/ O

Features

• Arm A35 Quad-Core 64-bit @ 1.2 GHz
• Cortex-M4F Core
• Tensilica HiFi 4 DSP Core
• 2-GB LPDDR4 @ 1,600 MHz Industrial
• Temp by Micron
• 4× Vec4 Shaders with 16 Execution Units
• H.265 — up to 4K @ 30 fps Decode
• H.264 — up to 1080 @ 60 fps Encode
• HDMI Output
• Dual MIPI Display support
• Cypress’ industry-leading 802.11ac Wi-Fi and Dual-Mode Bluetooth wirelessconnectivity
• 2 USB (2× 3.0 and 1× Micro-USB B)
• 40-Pin Low-Speed Connector
• 60-Pin High-Speed Connector
• Compact Size of 85 × 100 mm

Documents

Product-Brief-AI-MLBoard
