Pulse Electronics CorporationP0585NLTelecom, Übertrager
Telecom Transformer 1:1:1:1:1 0.33Ohm Prim. DCR 0.18Ohm Sec. DCR 10 Terminal Pin Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8541.29.00.95 | |
| Automotive | No |
| PPAP | No |
| Offline Gate Drive Transformer | |
| 1:1:1:1:1 | |
| 3 | |
| 0.33 | |
| 0.18 | |
| 3000Vrms | |
| PC Pin | |
| Through Hole | |
| 10 | |
| -40 | |
| 125 | |
| Tray | |
| 20.57 | |
| 12.19 | |
| 19.05 |

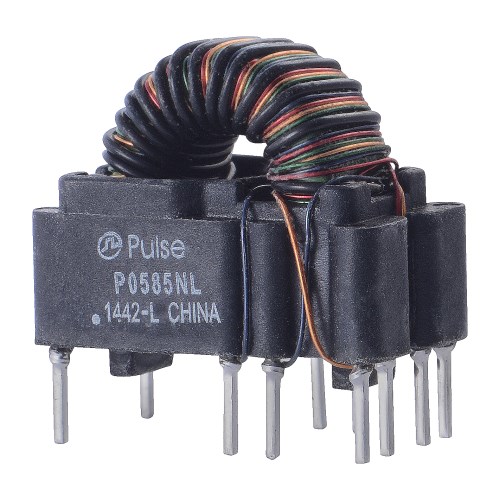

Never take telephone call speeds for advantage again by implementing this P0585NL telecom transformer from Pulse. This telecom transformer has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has 10 terminals. The component will be shipped in tray format. This product is 20.57 mm long, 19.05 mm tall and 12.19 mm deep. It also has a offline gate drive transformer. It has a turn ratio of 1:1:1:1:1. The maximum DCR on the primary side is 0.33 Ohm, while its 0.18 Ohm on the secondary side.
