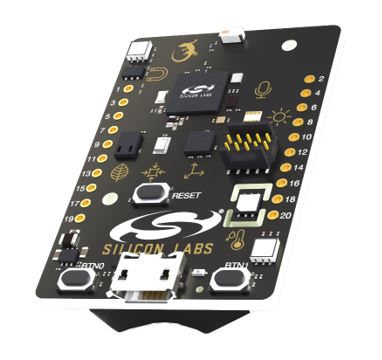

Silicon LabsThunderboard Sense 2 IoT Development Kit SLTB004ASensor Development Boards und Kits

Product Description

The Thunderboard sense 2 has a variety of on-board sensors that can provide the fastest path to develop and property your next IoT project/product. Use the Thunderboard Sense 2 to use its sensors to measure and collect motion, environmental and bio-metric data that is all watchable on your Android or iPhone smartphone with the Thunderboard app.

This Thunderboard sense has 4 times more Flash (1024 kB) and RAM (256 kB) than the original Thunderboard sense and has an added advance BLE capabilities, giving it a wide range of IoT capabilities. It includes a 2.4 GHz ceramic chip antenna for communication and four high brightness controllable LEDs/push buttons.

Features:

Wireless Gecko EFR32™:

• Wireless SoC with multi-protocol radio and 38.4 MHz operating frequency

• ARM® Cortex® M4 core with 256 kB RAM and 1024 kB Flash, Low Energy Consumption

• Flexible MCU peripheral interfaces

• 2.4 GHz ceramic chip antenna

On-Board Sensors:

• Relative Humidity and Temperature Sensor

• UV and Ambient Light Sensor

• Pressure Sensor

• Indoor Air Quality and Gas Sensor

• 6-axis Inertial Sensor

• Digital Microphone

• Hall-effect Sensor

I/O, Misc. Control, and Other Features:

• High brightness LEDs

• Segger J-Link Integrated Debugger

• USB CDC virtual serial port

• 8 Mbit SPI ultra-low power NOR flash for local storage

Mobile App Features:

• Android and iOS compatible

• Beacon notifications

• View sensor data

• Control LEDs and detect button pushes

• Stream sensor data to the cloud
