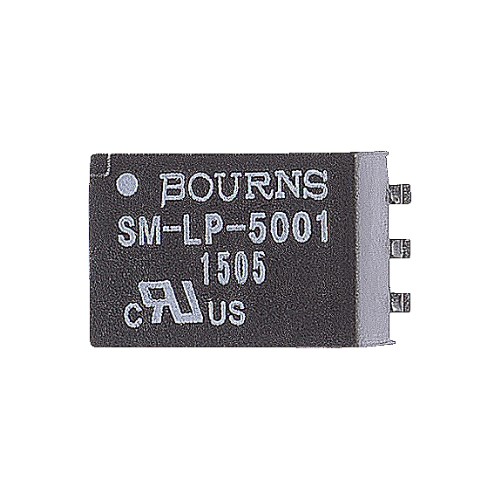

BournsSM-LP-5001Audiotransformator
Audio Transformer 1:1 2000Vrms 115Ohm Prim. DCR 115Ohm Sec. DCR 6 Terminal Gull Wing SMD
| Compliant | |
| EAR99 | |
| Active | |
| 8504.31.40.65 | |
| Automotive | No |
| PPAP | No |
This SM-LP-5001 audio transformer from Bourns provides filtering to a signal that passes through the device. It has an operating frequency of 0.2kHz to 4kHz. This audio transformer has a minimum operating temperature of -20 °C and a maximum of 85 °C. It has 6 terminals. This device comes in tube packaging. It has a turn ratio of 1:1. This product is 9.6 mm long, 7.36 mm tall and 14 mm deep. It also has a surface mount line matching transformer. The maximum DCR on the primary side is 115(Typ) Ohm, while its 115(Typ) Ohm on the secondary side.
