| RoHS EU | Compliant |
| ECCN (USA) | EAR99 |
| Part Status | Active |
| HTS | 8541.10.00.80 |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Typ | Diode Array |
| Konfiguration | Array 14 |
| Richtungsart | Bi-Directional |
| Anzahl von Elementen pro Chip | 14 |
| Max. Betriebsspannung (V) | 30 |
| Max. Kriechstrom (uA) | 0.02 |
| Kapazitätswert (pF) | 3(Typ) |
| Mindestbetriebstemperatur (°C) | -40 |
| Max. Betriebstemperatur (°C) | 105 |
| Fail Safe Protection | No |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1.5(Max) |
| Verpackungsbreite | 4(Max) |
| Verpackungslänge | 10(Max) |
| Leiterplatte geändert | 16 |
| Standard-Verpackungsname | SO |
| Lieferantenverpackung | SOIC |
| Stiftanzahl | 16 |
| Leitungsform | Gull-wing |

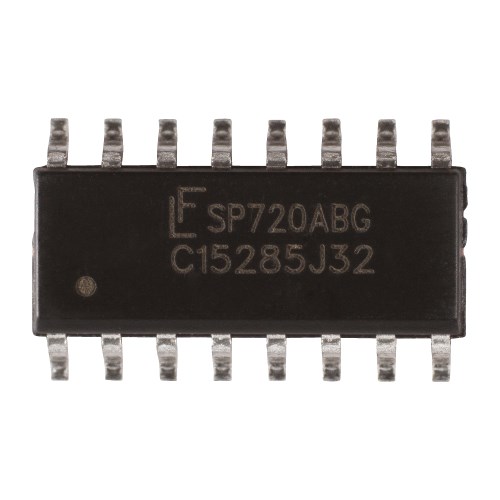

Protect your investments from electrostatic discharge by implementing this diode array SP720ABG ESD protection device from Littelfuse. This ESD diode has a maximum ESD protection device voltage of 15@Air Gap/8@Contact Disc/15@HBM kV. This ESD diode has an operating temperature range of -40 °C to 105 °C. Its capacitance value is 3(Typ) pF. It is made in a array 14 configuration.
