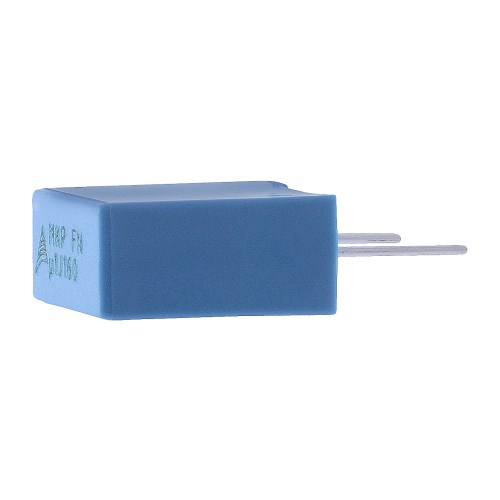

TDKB32620A5104JKondensator, Kunststofffilm
Cap Film 0.1uF 160V PP 5%( 10 X 5 X 10.5mm) Radial Stacked 7.5mm 105°C Bulk
| Compliant | |
| EAR99 | |
| Active | |
| 8532.25.00.80 | |
| Automotive | No |
| PPAP | No |
| Pulse | |
| 0.1uF | |
| 5% | |
| 160VDC|90VAC | |
| PP | |
| Smallest Possible Dimensions|Very Good Self Healing Properties|Very High Pulse Strength | |
| Stacked | |
| Through Hole | |
| Radial | |
| 7.5 | |
| 10 X 5 X 10.5 | |
| Straight | |
| -55 | |
| 105 | |
| Bulk | |
| 10(Max) | |
| 5(Max) | |
| 10.5(Max) | |
| 0.5 | |
| 6 | |
| 10.5(Max) |
This pulse B32620A5104J plastic film capacitor from EPCOS is ideal for voltage smoothing and would improve the signal for any filter or audio-based design. It can withstand a voltage of 160 VDC|90VAC. This polypropylene film capacitor has a maximum operating temperature of 105 °C. This product is 10(Max) mm long, 10.5(Max) mm tall and 5(Max) mm deep. The B32620A5104J polypropylene film capacitor has a radial termination style. Its capacitance value is 0.1uF. This part has a lead diameter of 0.5 mm and a pitch of 7.5 mm. It has a tolerance of 5%.
