12V DC to DC Single Output Power Supply for ADSL Modem
Referenzdesign unter Verwendung des Teils TPS61170 von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- ADSL Modem
- Audio Dock
Beschreibung

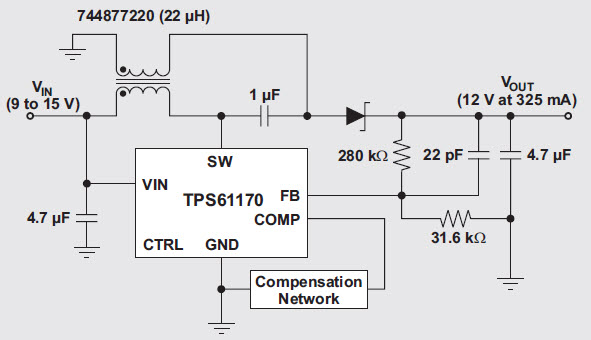

- SEPIC Design With 9 to 15V VIN and 12V VOUT at 325mA
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage9 to 15 V
-
Output Voltage12 V
-
Output Current0.325 A
-
TopologySingle-Ended Primary Inductance
Empfohlene Bauteile (8)
