19V AC to DC Single Output Power Supply
Referenzdesign unter Verwendung des Teils NCP1217AD133R2G von onsemi

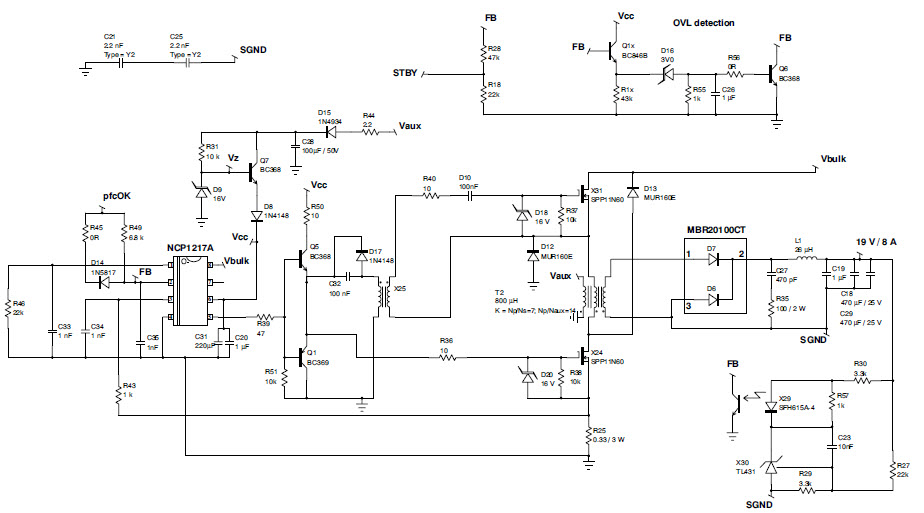

Bilder
1 / 2
Zugehörige Dokumente
- 1N5817 SPICE2
- MUR160RL PSPICE
- MUR460 SPICE2
- MUR460 SPICE3
- BC846BLT1G SPICE2
- MUR160RL SPICE3
- NCP1217 IsSPICE
- 1N5930BRL SABER
- 1N5930BRL SPICE2
- BC846BLT1G PSPICE
- 1N5930BRL SPICE3
- BC846BDW1T1G SABER
- TL431 PSPICE
- 1N5817 SIN
- 1N5930BRL PSPICE
- 1N4934RL SABER
- MBR20100CT SPICE2
- MBR20100CT SIN
- MUR160RL SPICE2
- 1N4934RL SPICE2
- BC846BDW1T1G PSPICE
- BC846BLT1G SABER
- MBR20100CT LIB Model
- MUR160RL SABER
- 1N4934RL PSPICE
- 1N4934RL SPICE3
- BC846BDW1T1G SPICE2
- BC846BDW1T1G SPICE3
- BC846BLT1G SPICE3
- MUR460 SABER
- MUR460 PSPICE
- NCP1217 PSPICE
- 1N5817 LIB Model
- 1N5817 SPICE3
- MBR20100CT SPICE3
Für Endprodukte
- Power Supplies
Beschreibung
- NCP1605 is a power factor controller, designed to start first and to remain active as long as power supply is plugged in
Haupteigenschaften
-
Conversion TypeAC to DC
-
Input Voltage90 to 265 (AC) V
-
Output Voltage19 V
-
Output Current8 A
-
Efficiency86.9 %
-
TopologyForward
