2ED100E12-F, Evaluation Board for 16V MOSFET Power Driver
Referenzdesign unter Verwendung des Teils IR2085S von Infineon Technologies AG
Bilder
1 / 7
Für Endprodukte
- Industrial
Beschreibung
- 2ED100E12-F, Evaluation Board for 16V MOSFET Power Driver. The Evaluation Driver Board 2ED100E12-F was developed to support customers during their first steps designing applications with Econo-DUAL modules
Haupteigenschaften
-
Input Voltage15 V
-
Output Voltage16 V
Empfohlene Bauteile (16)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
SN74LVC1G14DCKR-P | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 1-Element CMOS 5-Pin SC-70 T/R | In den Warenkorb | |
|
AD7400YRWZ-REEL | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Delta-Sigma 10Msps 16-bit Serial 16-Pin SOIC W T/R | In den Warenkorb | |
|
AD8542ARZ-REEL7 | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Dual GP R-R I/O 5.5V Medical 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
AD8542ARZ-REEL | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Dual GP R-R I/O 5.5V Medical 8-Pin SOIC N T/R | In den Warenkorb | |
|
TLV431BIDCKTE4 | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 6V 15mA 6-Pin SC-70 T/R | In den Warenkorb | |
|
ZMR500FTA | Diodes Incorporated | Linear Regulators | Standard Regulator Pos 5V 0.05A 3-Pin SOT-23 T/R | In den Warenkorb | |
|
|
SN74LVC1G02DCKR | Texas Instruments | Logic Gates | NOR Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R | In den Warenkorb | |
|
|

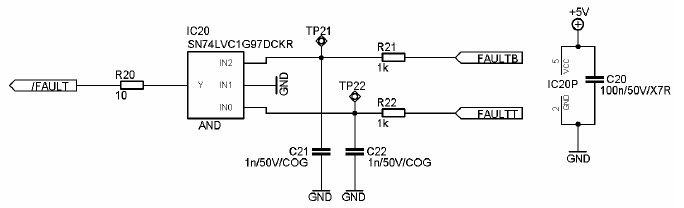

SN74LVC1G97DCKR-P | Texas Instruments | Logic Gates | Multi Function Gate 1-Element 2-IN CMOS 6-Pin SC-70 T/R | In den Warenkorb | |
|
|
AD7400YRWZ | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Delta-Sigma 10Msps 16-bit Serial 16-Pin SOIC W Tube | In den Warenkorb | |
|
|
SN74LVC1G14DCKR | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 1-Element CMOS 5-Pin SC-70 T/R | In den Warenkorb | |
|
|
AD7400YRWZ-REEL7 | Analog Devices | Analog to Digital Converters - ADCs | 1-Channel Single ADC Delta-Sigma 10Msps 16-bit Serial 16-Pin SOIC W T/R | In den Warenkorb | |
|
|
AD8542ARZ | Analog Devices | Operational Amplifiers - Op Amps | Op Amp Dual GP R-R I/O 5.5V Medical 8-Pin SOIC N Tube | In den Warenkorb | |
