5V DC to DC Single Output Power Supply for Power Management
Referenzdesign unter Verwendung des Teils LT1013 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Power Management
- Switching Power Supply
Beschreibung

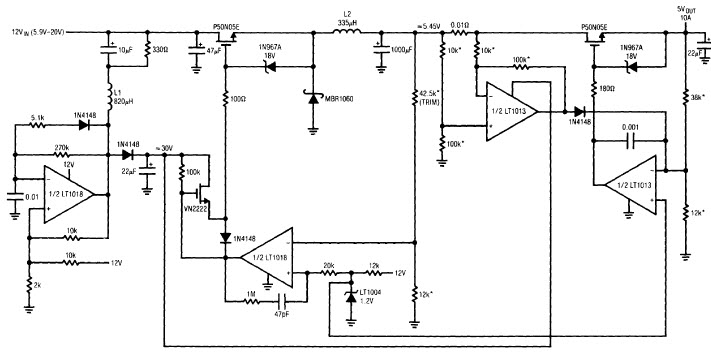

- Circuit shows Power Supply Using Ultra-Low Dropout Linear Regulator With Pre-Regulator to Provide 5V at 10A Output Voltage From 5.9V to 20V DC Input Voltage
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5.9 to 20 V
-
Output Voltage5 V
-
Output Current10 A
-
Efficiency86 %
-
TopologyBuck
