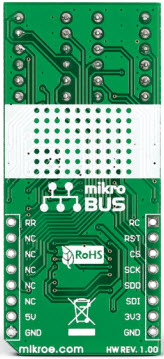

7X10RCLICK, Evaluation Kit based on 74HC595 Counter Shift Register

Beschreibung

• 7X10RCLICK, Evaluation Kit based on 74HC595 Counter Shift Register. 7x10 R click carries a matrix of 70 red LEDs driven by a pair of 8-bit serial-in, parallel out shift registers, a Darlington Transistor array and a Johnson counter. The click communicates with the target MCU through the mikroBUS SPI interface (SCK, SDO, SDI), with additional functionality provided by R CLK, MR, LATCH and R RST pins
