AD9235-20PCBZ, Evaluation Kit for evaluating AD9235BRU-20, 20Msps, 12-bit, Single ADC
Referenzdesign unter Verwendung des Teils AD9235BRU-20 von Analog Devices
Bilder
1 / 5
Für Endprodukte
- Communications and Telecom
- Handheld POS Scanner
- Instrumentation and Measurement
- Oscilloscope
- Ultrasound Imaging
Beschreibung

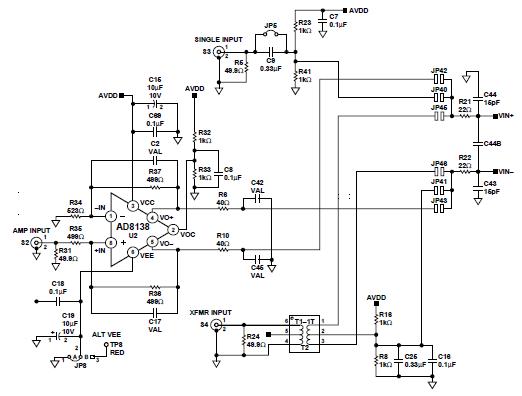

- AD9235-20PCBZ, Evaluation Kit for evaluating AD9235BRU-20, 20Msps, 12-bit, Single ADC Parallel 28-Pin TSSOP. The AD9235 evaluation board provides the support circuitry required to operate the ADC in its various modes and configure-rations. The converter can be driven differentially, through an AD8138 driver or a transformer or single-ended. Separate power pins are provided to isolate the DUT from the support circuitry
Haupteigenschaften
-
ADC Resolution12 Bit
-
ADC Sampling Rate20M SPS
-
Number of Channels1CH
