ADM00652, Evaluation Kit for the MCP37XX0-200, 14Bit, 200-Msps ADC VTLA
Referenzdesign unter Verwendung des Teils MCP37D20-200I von Microchip Technology
Bilder
1 / 8
Zugehörige Dokumente
Für Endprodukte
- Cell Basestation
- Communications Equipment
- Data Acquisition System
- Portable Instrumentation
- Radar and Sonar
- Scanners
- Ultrasound Imaging
Beschreibung

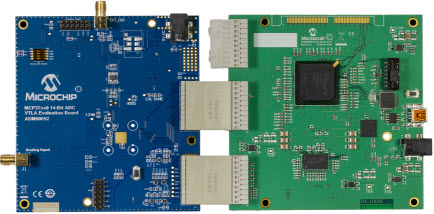

- ADM00652, Evaluation Board provides the opportunity to evaluate the performance of the MCP37XX0-200 Device Family. With the MCP37D20-200, 14-bit, 200Msps single channel pipelined A/D converter on-board, the user can evaluate the functionality of the 14-bit, 200Msps A/D converters and the digital signal processing features. With the help of a compatible data capture card, the evaluation board can provide the user with performance analysis features through the PC GUI
Haupteigenschaften
-
ADC Resolution14 Bit
-
ADC Sampling Rate200M SPS
-
Number of Channels1CH
