AKD4366, Evaluation Board for AK4366 24bit DAC with built-in HeadPhone Amplifier
Referenzdesign unter Verwendung des Teils AK4366VTP von Asahi Kasei Microdevices Corporation
Bilder
1 / 5
Für Endprodukte
- Headphone Amplifier
Beschreibung

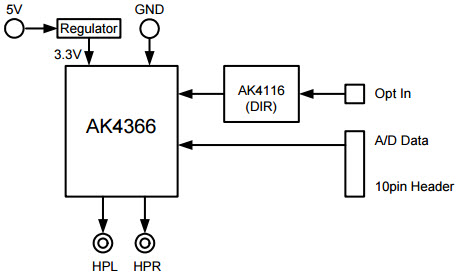

- AKD4366, Evaluation Board for the AK4366, 24bit DAC with built-in HeadPhone Amplifier. The AKD4366 has the interface with ADC evaluation boards. Therefore, it's easy to evaluate the AK4366. The AKD4366 also has the digital audio interface and can achieve the interface with digital audio systems via opt-connector
Empfohlene Bauteile (8)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
74LVC541ABQ-Q100X | Nexperia | Buffers and Line Drivers | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS Automotive AEC-Q100 20-Pin DHVQFN EP T/R | In den Warenkorb | |
|
74LVC541AD-Q100J | Nexperia | Buffers and Line Drivers | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS Automotive AEC-Q100 20-Pin SO T/R | In den Warenkorb | |
|
74LVC541APW,118 | Nexperia | Buffers and Line Drivers | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP T/R | In den Warenkorb | |
|
|
74LVC541AD,118 | Nexperia | Buffers and Line Drivers | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin SO T/R | In den Warenkorb | |
|
|
74LVC541ABQ-Q100X | Nexperia | Buffers and Line Drivers | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS Automotive AEC-Q100 20-Pin DHVQFN EP T/R | In den Warenkorb | |
|
|
74LVC541APW,118 | Nexperia | Buffers and Line Drivers | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP T/R | In den Warenkorb | |
|
|
74LVC541ABQ,115 | Nexperia | Buffers and Line Drivers | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin DHVQFN EP T/R | In den Warenkorb | |
|
|
74LVC541APW-Q100J | Nexperia | Buffers and Line Drivers | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS Automotive AEC-Q100 20-Pin TSSOP T/R | In den Warenkorb | |
