AKD4452, AK4452 Sound Quality Evaluation Board for AK4452 32-bit, 2Ch DAC
Referenzdesign unter Verwendung des Teils AK4452VN von Asahi Kasei Microdevices Corporation
Bilder
1 / 8
Für Endprodukte
- AV Receiver
- Car Audio
- Portable DVD
Beschreibung

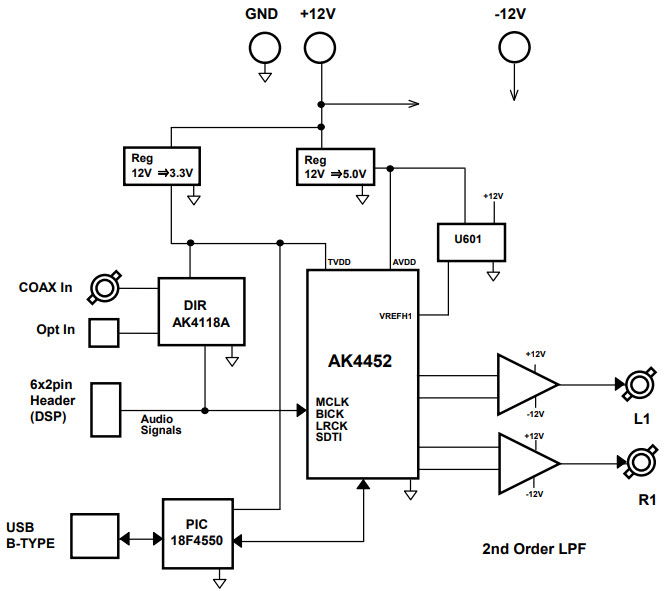

- AKD4452, Evaluation Board for the AK4452 (32-bit 2ch DAC) that supports AV-Receiver, DVD-Audios, Car-Audio Systems. It integrates differential output low pass filters, allowing quick evaluation with digital audio interface
Empfohlene Bauteile (20)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
SN74LVC2G14DCKRG4 | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SC-70 T/R | In den Warenkorb | |
|
AK4118AEQP-L | Asahi Kasei Microdevices Corporation | Transceivers Misc | Transceiver 2TX 7RX 48-Pin LQFP | In den Warenkorb | |
|
SN74LVC2G14DBVRE4 | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SOT-23 T/R | In den Warenkorb | |
|
|
SN74LVC2G14DCKRE4 | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SC-70 T/R | In den Warenkorb | |
|
SN74LVC2G14YZPR | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin DSBGA T/R | In den Warenkorb | |
|
|
SN74LVC2G14DBVR | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element ECL 6-Pin SOT-23 T/R | In den Warenkorb | |
|
|
SN74LVC2G14DCKR | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SC-70 T/R | In den Warenkorb | |
|
|
SN74LVC2G14DBVTG4 | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SOT-23 T/R | In den Warenkorb | |
|
|
SN74LVC2G14DBVT | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SOT-23 T/R | In den Warenkorb | |
|
|
SN74LVC2G14DCKTG4 | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SC-70 T/R | In den Warenkorb | |
|
|
SN74LVC2G14DBVRG4 | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SOT-23 T/R | In den Warenkorb | |
|
|
SN74LVC2G14DCKR-P | Texas Instruments | Inverters and Schmitt Triggers | Inverter Schmitt Trigger 2-Element CMOS 6-Pin SC-70 T/R | In den Warenkorb | |
