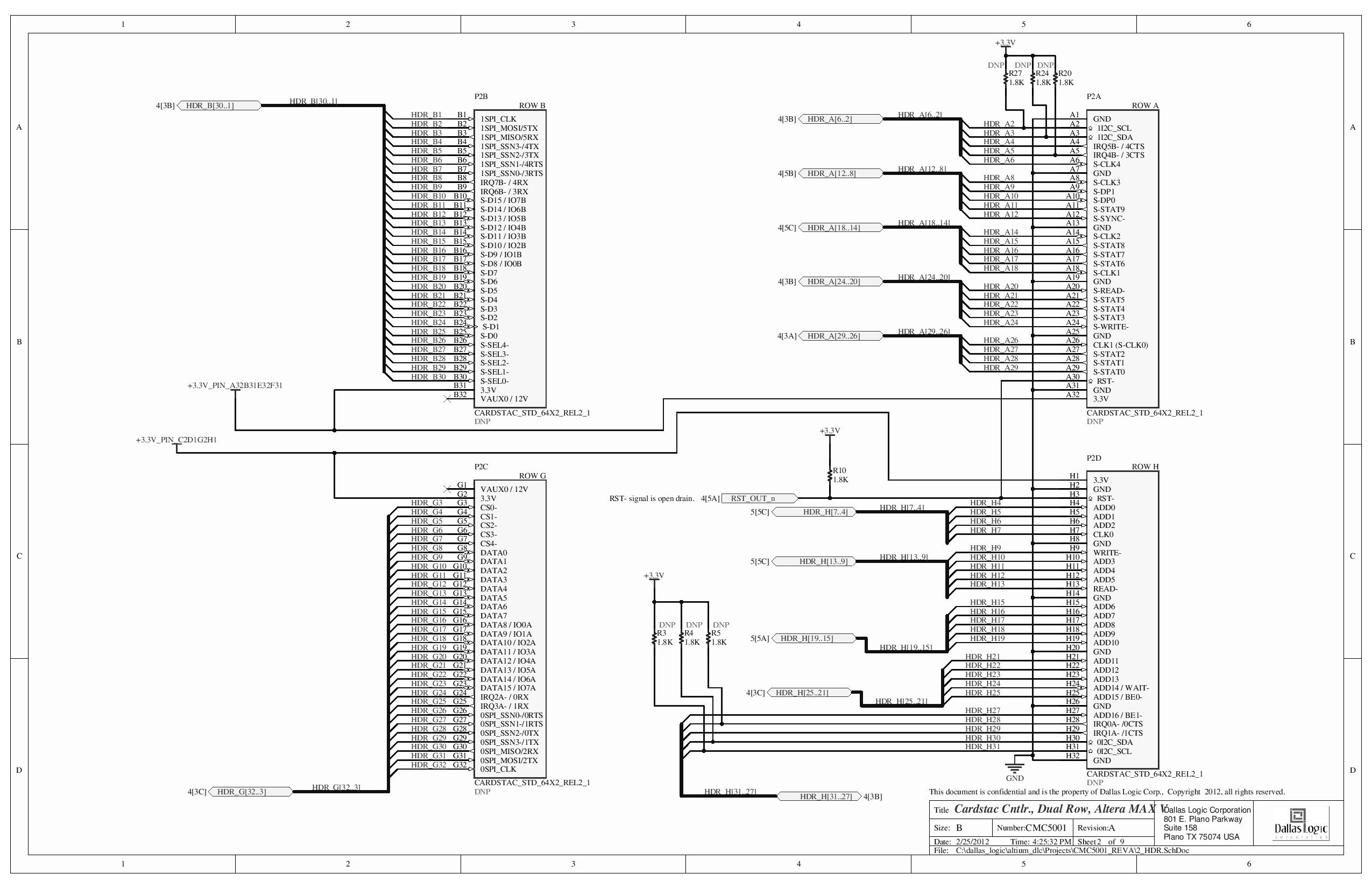

CMC5001-0M-2210-5, MAX-V CPLD Module. The CMC5001 MAX-V module allows implementation of CPLD logic functions in a compact form factor module
Referenzdesign unter Verwendung des Teils 5M2210ZF324C5N von Dallas Logic Corporation
Bilder
1 / 9
Zugehörige Dokumente
Für Endprodukte
- Industrial
Beschreibung
- CMC5001-0M-2210-5, MAX-V CPLD Module. The CMC5001 MAX-V module allows implementation of CPLD logic functions in a compact form factor module. The CMC5001 MAX-V module also supports the Cardstac specification (master or slave standard card, 256 pin), and can interface with other modules designed to the Cardstac specification
Empfohlene Bauteile (9)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS3820-33QPDBVRQ1 | Texas Instruments | Supervisory Circuits | Processor Supervisor 2.93V 1 Active Low/Push-Pull 5-Pin SOT-23 T/R Automotive AEC-Q100 | In den Warenkorb | |
|
25AA1024-I/SM | Microchip Technology | EEPROM | EEPROM Serial-SPI 1M-bit 128K x 8 2.5V/3.3V/5V 8-Pin SOIJ Tube | In den Warenkorb | |
|
TPS73718DCQRG4 | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 1A 6-Pin(5+Tab) SOT-223 T/R | In den Warenkorb | |
|
|
TPS3820-33DBVR | Texas Instruments | Supervisory Circuits | Processor Supervisor 2.93V 1 Active Low/Push-Pull 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TPS73718DCQG4 | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 1A 6-Pin(5+Tab) SOT-223 Tube | In den Warenkorb | |
|
TC77-3.3MCTTR | Microchip Technology | Temperature and Humidity Sensors | Temp Sensor Digital Serial (3-Wire, SPI) 5-Pin SOT-23 T/R | In den Warenkorb | |
|
|
TPS73718DCQR | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 1A 6-Pin(5+Tab) SOT-223 T/R | In den Warenkorb | |
|
|
TPS73718DCQ | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.8V 1A 6-Pin(5+Tab) SOT-223 Tube | In den Warenkorb | |
|
5M2210ZF324C5N | Intel | Complex Programmable Logic Devices - CPLDs | CPLD MAX® V Family 1700 Macro Cells 201.1MHz 1.8V 324-Pin FBGA Tray | In den Warenkorb | |
