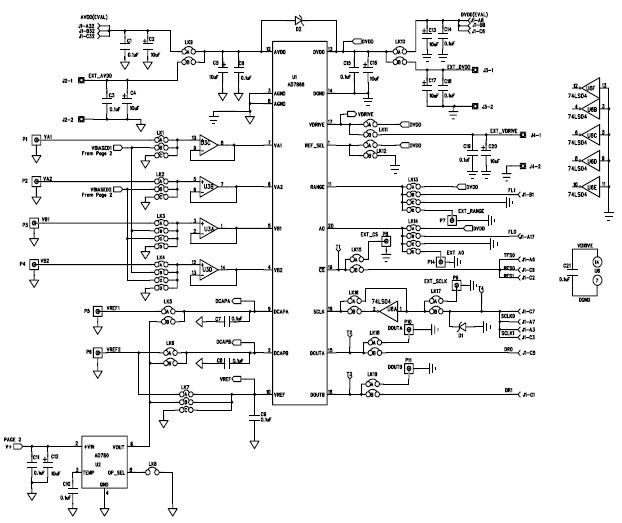

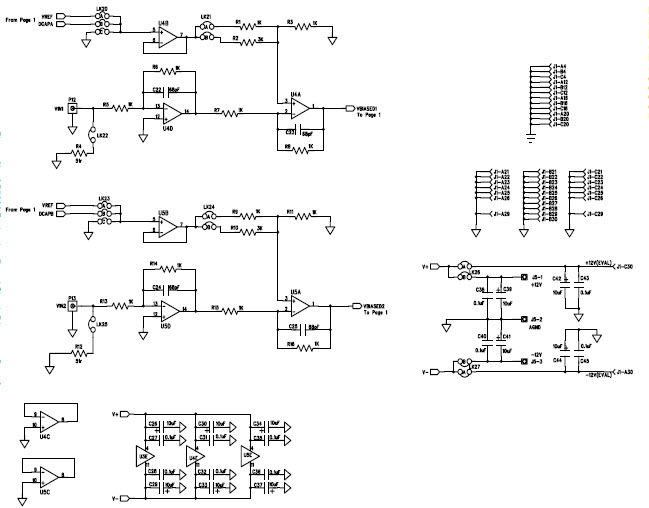

EVAL-AD7866CB, evaluation board for the AD7866, 12-Bit, 1MSPS, 2CH ADC for Data Acquisition System
Referenzdesign unter Verwendung des Teils AD7866 von Analog Devices
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Data Acquisition System
Beschreibung
- EVAL-AD7866CB, evaluation board for the AD7866 which is a dual, 12-bit, high speed, low power successive-approximation ADC. This part operates from a single +2.7 V to +5.25 V power supply and features throughput rates up to 1 MSPS
Haupteigenschaften
-
ADC Resolution12 Bit
-
ADC Sampling Rate1M SPS
-
Number of Channels2CH
Empfohlene Bauteile (7)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
AD780ANZ | Analog Devices | Voltage References | V-Ref Programmable 2.5V/3V 10mA 8-Pin PDIP N Tube | In den Warenkorb | |
|
AD7866BRUZ-REEL7 | Analog Devices | Analog to Digital Converters - ADCs | 4-Channel Dual ADC SAR 1Msps 12-bit Serial 20-Pin TSSOP T/R | In den Warenkorb | |
|
|
AD7866BRUZ | Analog Devices | Analog to Digital Converters - ADCs | 4-Channel Dual ADC SAR 1Msps 12-bit Serial 20-Pin TSSOP Tube | In den Warenkorb | |
|
|
AD7866BRUZ-REEL | Analog Devices | Analog to Digital Converters - ADCs | 4-Channel Dual ADC SAR 1Msps 12-bit Serial 20-Pin TSSOP T/R | In den Warenkorb | |
|
|
AD7866ARUZ-REEL7 | Analog Devices | Analog to Digital Converters - ADCs | 4-Channel Dual ADC SAR 1Msps 12-bit Serial 20-Pin TSSOP T/R | In den Warenkorb | |
|
|
AD7866ARUZ-REEL | Analog Devices | Analog to Digital Converters - ADCs | 4-Channel Dual ADC SAR 1Msps 12-bit Serial 20-Pin TSSOP T/R | In den Warenkorb | |
|
|
AD7866ARUZ | Analog Devices | Analog to Digital Converters - ADCs | 4-Channel Dual ADC SAR 1Msps 12-bit Serial 20-Pin TSSOP Tube | In den Warenkorb | |
