KIT34844AEPEVBE, Evaluation Kit - 34844, LED Backlight Driver, Power Supply
Referenzdesign unter Verwendung des Teils MC34844 von NXP Semiconductors
Bilder
1 / 2
Für Endprodukte
- LED Driver
- Lighting
Beschreibung

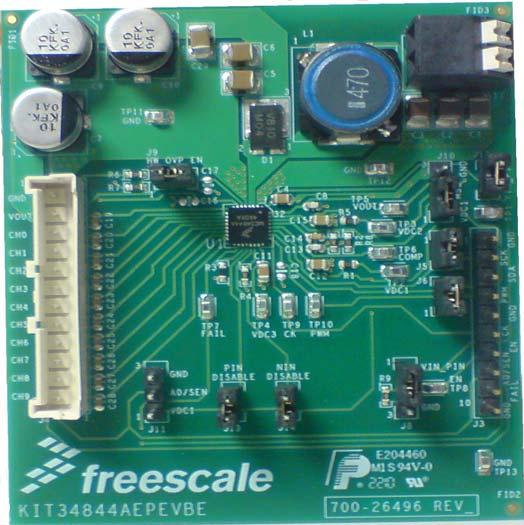

- KIT34844AEPEVBE Evaluation board supports the 34844/A, which is a high efficiency, LED driver for use in backlighting LCD displays from 10" to 20"+. Operating from supplies of 7.0 to 28V, the MC34844/A is capable of driving up to 160 LEDs in 10 parallel strings. Current in the 10 strings is matched to within 2%, and can be programmed via the I2C/SM Bus interface. The 34844/A also includes a Pulse Width Monitor (PWM) generator for LED dimming. The LEDs can be dimmed to one of 256 levels, programmed through the I2C/SM Bus interface. Up to 65,000:1 (256:1 PWM, 256:1 Current DAC) dimming ratio
