LT3976 Demo Board, 40V, 5A, 2MHz Step-Down Switching Regulator with 3.3A Quiescent Current
Referenzdesign unter Verwendung des Teils LT3976EMSE von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Automotive and Transportation
- Industrial
- Portable
Beschreibung

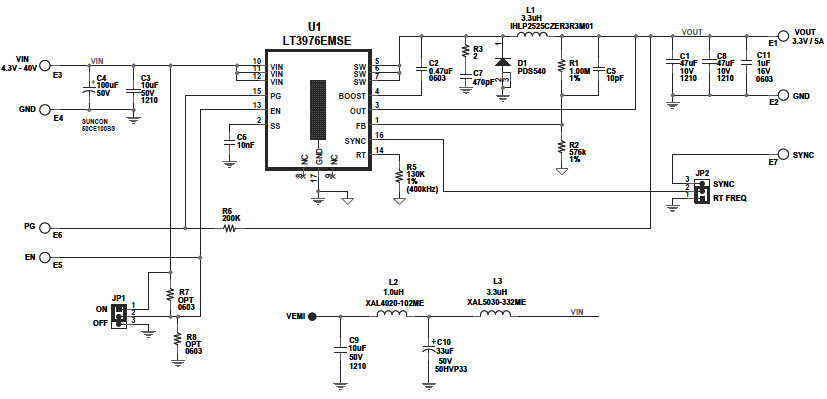

- Demonstration circuit 1848A is a monolithic step-down DC/DC switching regulator featuring the LT3976. The LT3976 is a compact, high efficiency, high speed monolithic step down switching regulator that consumes only 3.3A of quiescent current. The demo circuit is designed for 3.3V,5A output from a 4.3V to 40V input
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage4.3 to 40 V
-
Output Voltage3.3 V
-
Output Current5 A
-
Efficiency82.1 %
-
TopologyBuck
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LT3976EMSE#PBF-ES | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4.3V to 40V Step Down Single-Out 16V 5A 16-Pin MSOP EP Tube | In den Warenkorb | |
|
|
LT3976EMSE#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4.3V to 40V Step Down Single-Out 16V 5A 16-Pin MSOP EP T/R | In den Warenkorb | |
|
|
LT3976EMSE#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4.3V to 40V Step Down Single-Out 16V 5A 16-Pin MSOP EP Tube | In den Warenkorb | |
|
|
LT3976EMSE | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 4.3V to 40V Step Down Single-Out 16V 5A 16-Pin MSOP EP Tube | In den Warenkorb | |
