LTM4601EV Demo Board, Polyphaser High Density Power Module
Referenzdesign unter Verwendung des Teils LTM4601EV#PBF von Analog Devices
Bilder
1 / 3
Zugehörige Dokumente
Für Endprodukte
- Automotive and Transportation
- Communications and Telecom
- Industrial
- Servers
Beschreibung

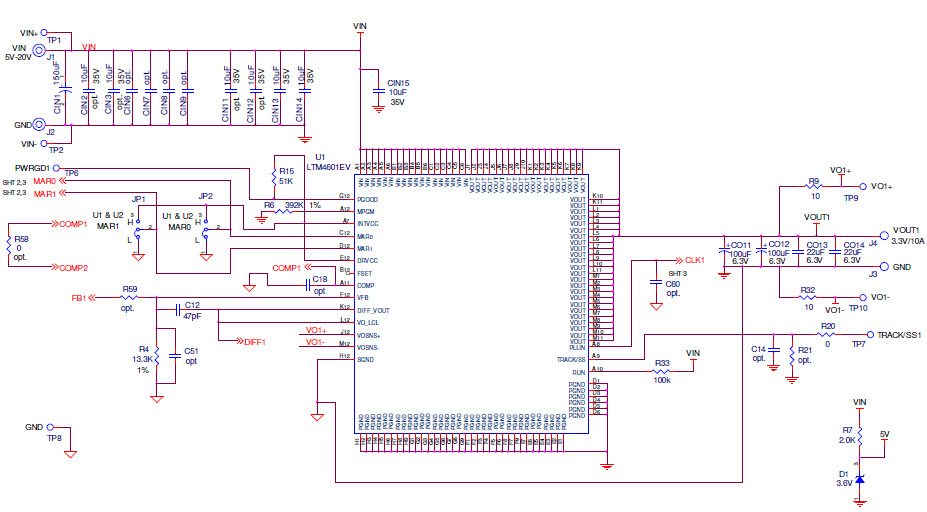

- Demonstration circuit DC1118A-A features the LTM4601EV, the high efficiency, high density switch mode step-down power modules. The input voltage range is from 5V to 20V. The output voltages are 3.3V and 2.5V
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage5 to 20 V
-
Output Voltage2.5|3.3 V
-
Output Current10@3.3V|12@5V A
-
TopologyBuck
Empfohlene Bauteile (6)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC6902CMS#TRPBF | Analog Devices | Silicon Oscillators | Spread Spectrum Silicon Oscillator - 0.005MHz to 20MHz CMOS 10-Pin MSOP T/R | In den Warenkorb | |
|
|
LTC6902CMS#PBF | Analog Devices | Silicon Oscillators | Spread Spectrum Silicon Oscillator - 0.005MHz to 20MHz CMOS 10-Pin MSOP Tube | In den Warenkorb | |
|
|
LTC6902CMS | Analog Devices | Silicon Oscillators | Spread Spectrum Silicon Oscillator - 0.005MHz to 20MHz CMOS 10-Pin MSOP | In den Warenkorb | |
|
|
LTC6902CMS#TR | Analog Devices | Silicon Oscillators | Spread Spectrum Silicon Oscillator - 0.005MHz to 20MHz CMOS 10-Pin MSOP T/R | In den Warenkorb | |
|
|
LTC6902 | Analog Devices | Silicon Oscillators | Spread Spectrum Silicon Oscillator - 0.005MHz to 20MHz CMOS 10-Pin MSOP | In den Warenkorb | |
|
LTM4601EV#PBF | Analog Devices | DC to DC Converter and Switching Regulator Module | Module DC-DC 1-OUT 0.6V to 5V 12A 118-Pin LGA Tray | In den Warenkorb | |
