MAX6952EVKIT+, Evaluation Kit for the MAX6952 SPI-interfaced four-digit 5x7 Matrix LED Display Driver
Referenzdesign unter Verwendung des Teils MAX6952EAX+ von Analog Devices
Bilder
1 / 3
Für Endprodukte
- Audio
- Gaming and Toys
- Industrial
- Medical and Healthcare
- Video and Imaging
Beschreibung

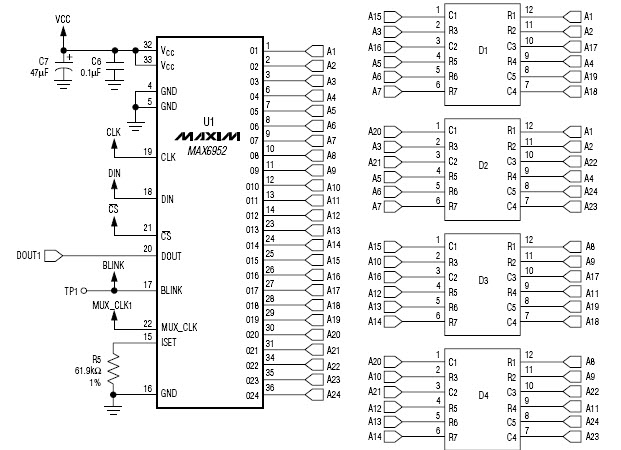

- MAX6952EVKIT+, MAX6952 evaluation kit (EV kit) is an assembled and tested printed circuit board (PCB) that demonstrates the MAX6952 SPI-interfaced four-digit 5x7 matrix LED display driver. Two cascaded MAX6952s are used to drive eight 5x7 monocolor matrix displays. The EV kit is powered by a user-supplied 2.7 to 5.5 VDC power supply. The SPI-compatible serial interface is connected to an IBM- compatible PC parallel port for easy evaluation
Haupteigenschaften
-
Display Type5x7 LED Matrix Display
Empfohlene Bauteile (3)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
MAX1841EUB+ | Analog Devices | Sensor and Detector Interface | Low Voltage SIM, Smart Card | In den Warenkorb | |
|
MAX3370EXK+ | Analog Devices | Level Translators | Voltage Level Translator 1-CH Bidirectional 5-Pin SC-70 T/R | In den Warenkorb | |
|
MAX6952EAX+ | Analog Devices | LED Drivers | LED Driver 140 Segment 16000uA Supply Current 36-Pin SSOP Tube | In den Warenkorb | |
