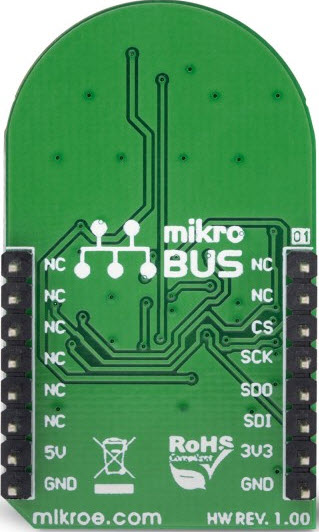

MIKROE-3275, Magnetic Rotary Click Board based on HMC1512 Magneto Resistive Sensor
Referenzdesign unter Verwendung des Teils HMC1512 von MikroElektronika
Bilder
1 / 5
Zugehörige Dokumente
Für Endprodukte
- Contactless Rotary Applications
- Human Machine Interface (HMI)
- Position & Direction Sensing
- Proximity Detection
Beschreibung
- MIKROE-3275, Magnetic rotary click is a very accurate position sensing Click board which utilizes the HMC1512, a magnetic field displacement sensor IC. This integrated sensor uses two coplanar saturated-mode Wheatstone bridges which consist of four magneto-resistive elements per bridge. The precision of up to 0.05-degree in the angular range of ±90-degree can be easily achieved using the Magnetic rotary click, making it far more accurate than the commonly used Hall-effect sensors. It comes in the package which also includes the mikroSDK software and a library with all the functions
Haupteigenschaften
-
Input Signal Amplitude3.3|5 V
