PMP4468, 18V-36Vdc Input, 5V/30W Active Clamp forward - Reference Design
Referenzdesign unter Verwendung des Teils LM5025AMTC/NOPB von Texas Instruments
Bilder
1 / 2
Zugehörige Dokumente
Für Endprodukte
- Power Supplies
Beschreibung

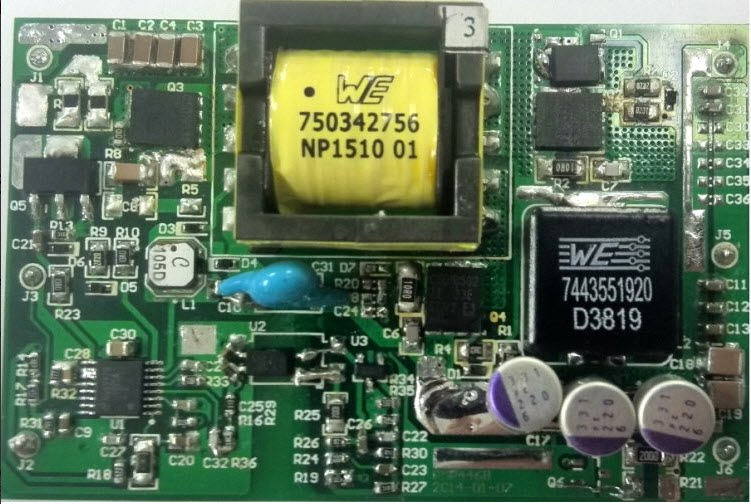

- PMP4468, 18V-36Vdc Input, 5V/30W Active Clamp forward - Reference Design. The PMP4468 is a DC-DC isolated module reference design targeted for industrial and telecom applications. The DC input range is 18V-36V, with 24V typical and the output is 5V/6A. An active clamp forward controller LM5025A is used in the design. The efficiency is up to 90% with good thermal performance
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage18 to 36 V
-
Output Voltage5 V
-
Output Current6 A
-
Output Power30 W
-
Efficiency91.3 %
-
TopologyForward- Active Clamp|Forward- Synchronous
