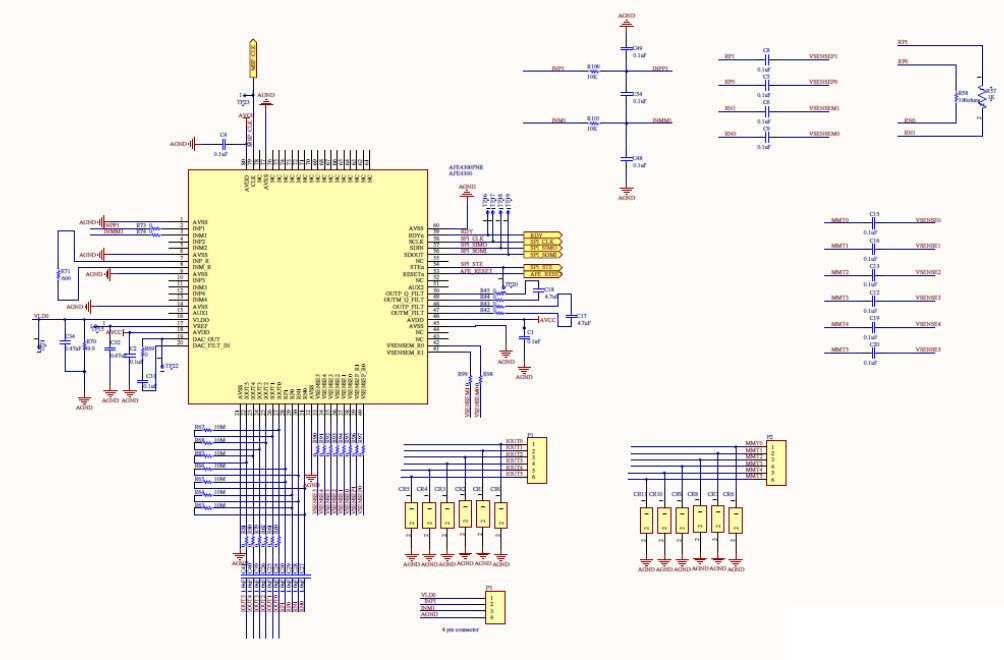

TIDA-00008, Hand-to-Hand Body Composition Meter with BLE Connectivity
Referenzdesign unter Verwendung des Teils MSP430F5528IRGCT von Texas Instruments
Bilder
1 / 5
Zugehörige Dokumente
Für Endprodukte
- Health System
- Notebook
- Smart Phone
- Tablet
Beschreibung
- TIDA-00008, This reference design is for a complete hand-held body composition or fat loss monitor end equipment featuring signal chain, power, and connectivity components. With AFE4300 body composition AFE, you can accelerate your body composition design to develop more quickly. This reference design also includes the full BLE connectivity design for easy interface to BLE enabled SmartPhones, tablets
Haupteigenschaften
-
Embedded System TypeMCU
-
Family NameMSP430
Empfohlene Bauteile (8)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC2951CDDB-1#TRMPBF | Analog Devices | Power Supply Controllers and Monitors | Processor Supervisor 0.8V 1 8-Pin DFN EP T/R | In den Warenkorb | |
|
AFE4300PNR | Texas Instruments | Analog Front End - AFE | AFE General Purpose 1 ADC 16bit 3.3V 80-Pin LQFP T/R | In den Warenkorb | |
|
TPS735285DRVT | Texas Instruments | Linear Regulators | LDO Regulator Pos 2.85V 0.5A 6-Pin WSON EP T/R | In den Warenkorb | |
|
|
LTC2951CDDB-2#TRPBF | Analog Devices | Power Supply Controllers and Monitors | Processor Supervisor 0.8V 1 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
LTC2951CDDB-1#TRPBF | Analog Devices | Power Supply Controllers and Monitors | Processor Supervisor 0.8V 1 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
LTC2951CDDB-2#TRMPBF | Analog Devices | Power Supply Controllers and Monitors | Processor Supervisor 0.8V 1 8-Pin DFN EP T/R | In den Warenkorb | |
|
|
TPS735285DRVR | Texas Instruments | Linear Regulators | LDO Regulator Pos 2.85V 0.5A 6-Pin WSON EP T/R | In den Warenkorb | |
|
MSP430F5528IRGCT | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 128KB Flash 2.5V/3.3V 64-Pin VQFN EP T/R | In den Warenkorb | |
