TIDA-00384, Portable Low Power HD Projection Display Reference Design using DLP Technology
Referenzdesign unter Verwendung des Teils DLPC3438ZEZ von Texas Instruments
Für Endprodukte
- Displays
- Signage Lighting
Beschreibung

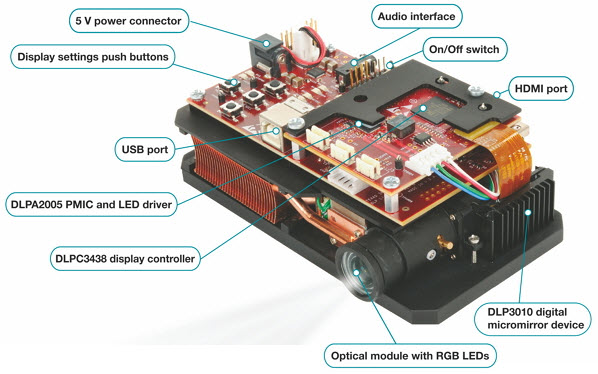

- TIDA-00384, Portable Low Power HD Projection Display Reference Design featuring the DLP3010 (.3 720p) DMD chipset, was designed to enable low power and mobile HD display applications used in accessory projectors, wearable displays, signage, industrial and medical displays. The chipset used in the design comprises of DLP3010 (.3 720p) DMD, DPC3438 display controller and DLPA2005 PMIC/LED driver
Haupteigenschaften
-
Display Type0.3" 720p DMD DLP Display
Empfohlene Bauteile (19)
Teilenummer | Hersteller | Typ | Beschreibung | |||
---|---|---|---|---|---|---|
|
TLV320DAC3101IRHBR | Texas Instruments | Data Conversion Misc | Stereo Audio DAC 192ksps 24bit 32-Pin VQFN EP T/R | In den Warenkorb | |
|
CY7C65215-32LTXI | Infineon Technologies AG | USB Interface ICs | Full Speed USB Serial Dual Channel Bridge with CapSense and BCD USB 2.0 1.8V/2.5V/3.3V/5V Tray 32-Pin QFN EP | In den Warenkorb | |
|
DLPA2005ERSLT | Texas Instruments | PMIC Solutions | PMIC/LED Driver 2.7V to 6V 48-Pin VQFN EP T/R | In den Warenkorb | |
|
TPS2061CDBVT | Texas Instruments | USB Power Switches | Power Switch Hi Side 1-OUT 96mOhm 5-Pin SOT-23 T/R | In den Warenkorb | |
|
TXS0102DCUT | Texas Instruments | Level Translators | Voltage Level Translator 2-CH Bidirectional 8-Pin VSSOP T/R | In den Warenkorb | |
|
CY7C65215-32LTXI | Infineon Technologies AG | USB Interface ICs | Full Speed USB Serial Dual Channel Bridge with CapSense and BCD USB 2.0 1.8V/2.5V/3.3V/5V Tray 32-Pin QFN EP | In den Warenkorb | |
|
MSP430F2274IDAR | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 32KB Flash 2.5V/3.3V 38-Pin TSSOP T/R | In den Warenkorb | |
|
CY7C65215-32LTXIT | Infineon Technologies AG | USB Interface ICs | Full Speed USB Serial Dual Channel Bridge with CapSense and BCD USB 2.0 1.8V/2.5V/3.3V/5V T/R 32-Pin QFN EP | In den Warenkorb | |
|
SN74AUP1G07DCKR-870868208 | Texas Instruments | Buffers and Line Drivers | Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 5-Pin SC-70 T/R | In den Warenkorb | |
|
SN74AUP1G07DCKR-203169503 | Texas Instruments | Buffers and Line Drivers | Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 5-Pin SC-70 T/R | In den Warenkorb | |
|
ABM8-27.000MHZ-B2-T | Abracon | Crystals | Crystal 27MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 50Ohm 4-Pin CSMD T/R | In den Warenkorb | |
|
TPS71501DCKR | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.205V to 15V 0.05A 5-Pin SC-70 T/R | In den Warenkorb |
