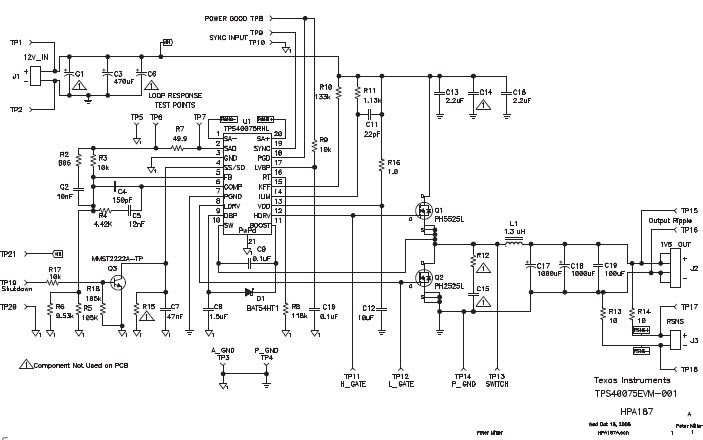

TPS40075EVM-001 evaluation module (EVM) is a synchronous buck converter providing a fixed 1
Referenzdesign unter Verwendung des Teils TPS40075RHL von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Backplane Distributed Power
- Communications and Telecom
- Power Supplies
- Wired Networking
Beschreibung
- TPS40075EVM-001 evaluation module (EVM) is a synchronous buck converter providing a fixed 1.5V output at up to 15A from a 12V input bus. The EVM is designed to start up from a single supply, so no additional bias voltage is required for start-up. The module uses the TPS40075 High Frequency Synchronous BUCK Controller with Remote Sense and Enable
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage10 to 14 V
-
Output Voltage1.45 to 1.55 V
-
Output Current0 to 15 A
-
Efficiency87 %
-
TopologyBuck
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS40075RHLR | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 20A 1000kHz 20-Pin VQFN EP T/R | In den Warenkorb | |
|
|
TPS40075RHLTG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 1000kHz 20-Pin VQFN EP T/R | In den Warenkorb | |
|
|
TPS40075RHLT | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 1000kHz 20-Pin VQFN EP T/R | In den Warenkorb | |
|
|
TPS40075RHLRG4 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Down 1000kHz 20-Pin VQFN EP T/R | In den Warenkorb | |
