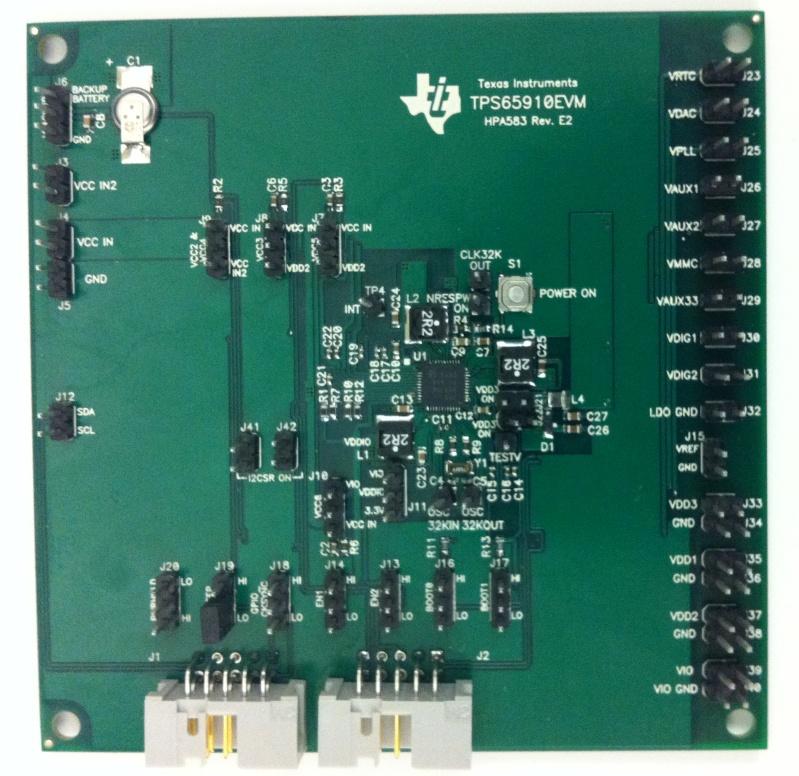

TPS659101EVM-583, Evaluation Module for TPS659101 Integrated Power Management IC w/ 4 DC/DCs, 8 LDOs
Referenzdesign unter Verwendung des Teils TPS659101A1RSL von Texas Instruments
Bilder
1 / 2
Für Endprodukte
- Handsets
- Portable
- Power Management
Beschreibung
- TPS659101EVM-583, Evaluation Module is a stand-alone module that demonstrates the functions of the integrated power management IC. It uses a USB-to-GPIO interface card (not included in the kit) to control the standard I2C interfaces in the TPS65910 device. It includes Windows compatible software to interface with the device. The software is a simple graphical user interface (GUI) that simplifies registers access for the IC. The software CD is not included in the kit
Haupteigenschaften
-
Conversion TypeDC to DC
-
TopologyBuck Boost
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TPS659101A1RSL | Texas Instruments | PMIC Solutions | OMAP3 Power Management 2.7V to 5.5V 48-Pin VQFN EP Tube | In den Warenkorb | |
|
|
TPS659101A1RSLR | Texas Instruments | PMIC Solutions | OMAP3 Power Management 2.7V to 5.5V 48-Pin VQFN EP T/R | In den Warenkorb | |
