TXS0202EVM, Evaluation Board Using TXS0202 2-Bit Voltage Level Translator Used in Inter-Chip USB Applications
Referenzdesign unter Verwendung des Teils TXS0202YZPR von Texas Instruments
Bilder
1 / 2
Für Endprodukte
- USB Interfaces
Beschreibung

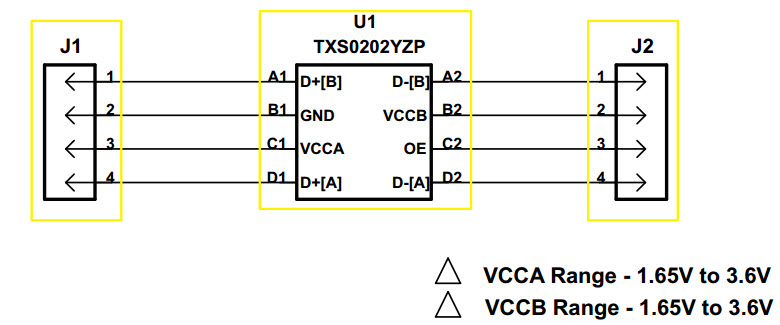

- TXS0202EVM, Evaluation Board for the TXS0202 is a 2-bit voltage level translator optimized for use in Inter-chip USB (IC-USB) applications. The TXS0202 EVM was created to allow simplified evaluation and prototyping without the need for full board development
Haupteigenschaften
-
Interface StandardsUART|RS-232
-
Input Voltage1.65 to 3.6 V
-
FunctionsLevel Translator
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TXS0202YZPR | Texas Instruments | Level Translators | Voltage Level Translator 2-CH Bidirectional 8-Pin DSBGA T/R | In den Warenkorb | |
