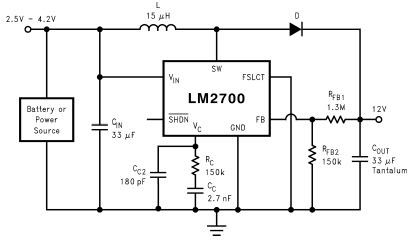

Typical Application Circuit for LM2700 600kHz operation, 12V output Step-up PWM DC/DC Converter
Referenzdesign unter Verwendung des Teils LM2700 von Texas Instruments
Für Endprodukte
- Power Supplies
Beschreibung
- Typical Application Circuit for LM2700 600kHz operation, 12V output Step-up PWM DC/DC Converter
Haupteigenschaften
-
Conversion TypeDC to DC
-
TopologyBoost
Empfohlene Bauteile (6)
Teilenummer | Hersteller | Typ | Beschreibung | |||
---|---|---|---|---|---|---|
|
LM2700LD-ADJ/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.2V to 12V Step Up Single-Out 1.26V to 17.5V 2.5A 14-Pin WSON EP T/R | In den Warenkorb | |
|
LM2700MT-ADJ/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.2V to 12V Step Up Single-Out 1.26V to 17.5V 2.5A 14-Pin TSSOP Tube | In den Warenkorb | |
|
LM2700LD-ADJ/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.2V to 12V Step Up Single-Out 1.26V to 17.5V 2.5A 14-Pin WSON EP T/R | In den Warenkorb | |
|
LM2700MTX-ADJ/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.2V to 12V Step Up Single-Out 1.26V to 17.5V 2.5A 14-Pin TSSOP T/R | In den Warenkorb | |
|
LM2700MT-ADJ/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.2V to 12V Step Up Single-Out 1.26V to 17.5V 2.5A 14-Pin TSSOP Tube | In den Warenkorb | |
|
LM2700MTX-ADJ/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.2V to 12V Step Up Single-Out 1.26V to 17.5V 2.5A 14-Pin TSSOP T/R | In den Warenkorb |
