DC2087A, Demonstration Board using LTM4676EY, 26A Step-Down Regulator with PMBUs Power System Management
Referenzdesign unter Verwendung des Teils LTM4676EY#PBF von Analog Devices
Bilder
1 / 6
Zugehörige Dokumente
Für Endprodukte
- Data Storage Devices
- Telecom Infrastructure
Beschreibung

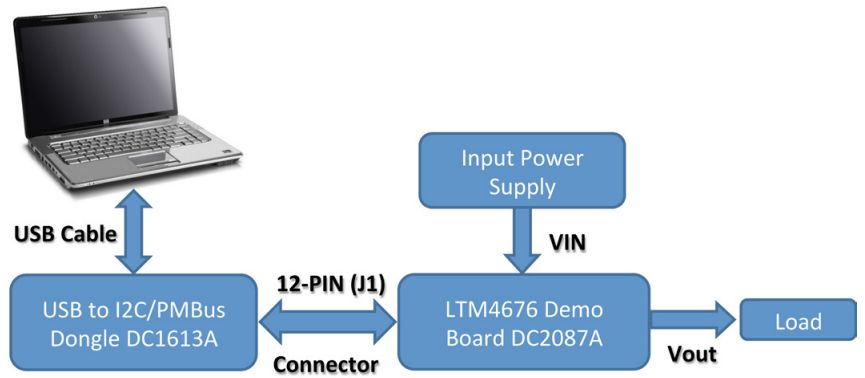

- DC2087A, Demonstration Board using LTM4676EY a single-output, high efficiency, high density, regulator with 4.5V to 16V input range. It can supply 26A maximum load current. The demo board has a LTM4676 regulator, which is a dual 13A or single 26A step-down regulator with PMBUs power system management. The DC2087A powers up to default settings and produces power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage4.5 to 16 V
-
Output Voltage0.5 to 4 V
-
Output Current26 A
-
Efficiency83.2 %
-
TopologyBuck
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
24LC025T-E/OT | Microchip Technology | EEPROM | EEPROM Serial-I2C 2K-bit 256 x 8 3.3V/5V 6-Pin SOT-23 T/R | In den Warenkorb | |
