EV-ADF4001SD1Z, Evaluation Board for Evaluating the ADF4001 Integer-N PLL Frequency Synthesizer
Referenzdesign unter Verwendung des Teils ADF4001BRUZ von Analog Devices
Bilder
1 / 4
Zugehörige Dokumente
Für Endprodukte
- Clock and Timing Devices
Beschreibung

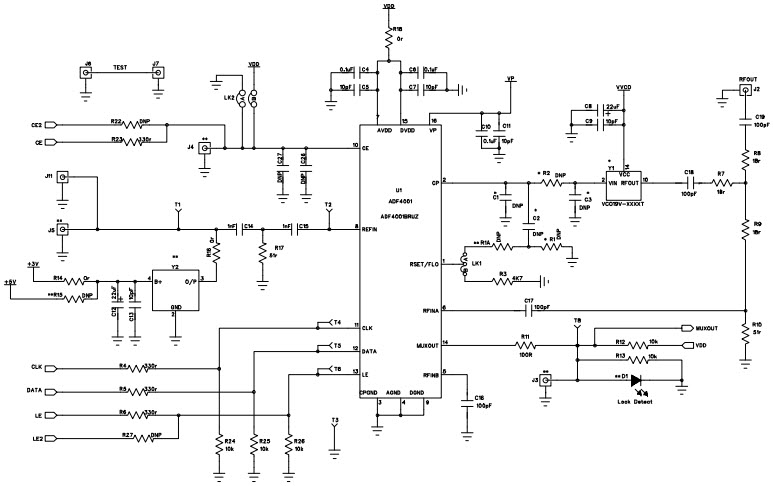

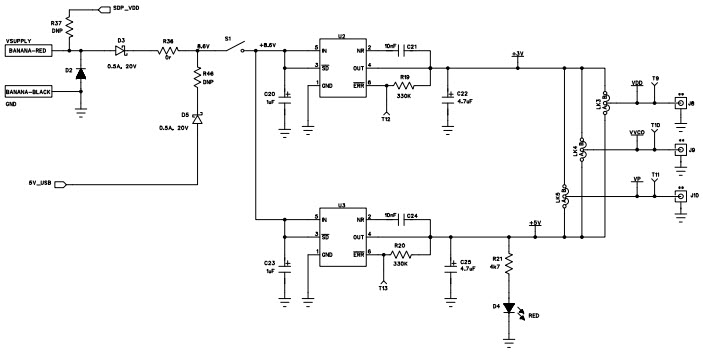

- EV-ADF4001SD1Z, Evaluation Board is designed to allow the user to evaluate the performance of the ADF4001 frequency synthesizer for phase-locked loops (PLLs). It shows the board, which contains the ADF4001 synthesizer, an SMA connector for the reference input, power supplies and an RF output. There is also a footprint for a loop filter and a VCO on board. The evaluation kit also contains software that is compatible with Window XP and later versions to allow easy programming of the synthesizer. This board requires an SDP-S (system demonstration platform serial) board. The SDP-S allows software programming of the ADF4001 device
Haupteigenschaften
-
Output Frequency200 MHz
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
24LC32A-I/MS | Microchip Technology | EEPROM | EEPROM Serial-I2C 32K-bit 4K x 8 3.3V/5V 8-Pin MSOP Tube | In den Warenkorb | |
|
ADF4001BRUZ | Analog Devices | Clock Generators and Synthesizers | Clock Generator 5MHz to 200MHz-IN 16-Pin TSSOP Tube | In den Warenkorb | |
