LTC1475-3.3, Push-Button ON/OFF 3.3V/250mA Regulator
Referenzdesign unter Verwendung des Teils LTC1475 von Analog Devices
Bilder
1 / 1
Für Endprodukte
- Battery Charger
- Cellular Phone
- Instrumentation and Measurement
- Safety
- Wireless Modem
Beschreibung

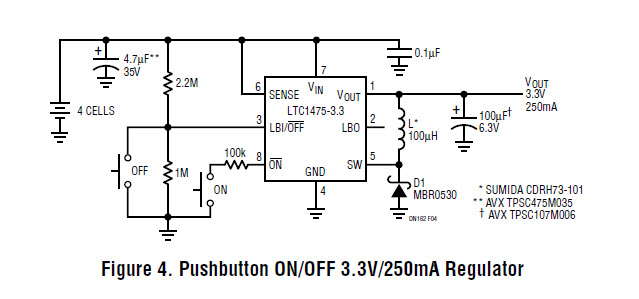

- Circuit shows LTC1475 provides the option of Push-Button control of ON/OFF mode for handheld products
Haupteigenschaften
-
Conversion TypeDC to DC
-
Output Voltage3.3 V
-
Output Current0.25 A
-
TopologyBuck
Empfohlene Bauteile (15)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LTC1475IS8#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 0.3A 8-Pin SOIC N T/R | In den Warenkorb | |
|
LTC1475CMS8-5#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 5V 0.3A 8-Pin MSOP T/R | In den Warenkorb | |
|
|
LTC1475CMS8#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 0.3A 8-Pin MSOP T/R | In den Warenkorb | |
|
|
LTC1475CMS8-3.3#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 3.3V 0.3A 8-Pin MSOP Tube | In den Warenkorb | |
|
|
LTC1475IS8#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 0.3A 8-Pin SOIC N Tube | In den Warenkorb | |
|
|
LTC1475CS8-3.3#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 3.3V 0.3A 8-Pin SOIC N Tube | In den Warenkorb | |
|
|
LTC1475CS8-3.3#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 3.3V 0.3A 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
LTC1475CMS8-5#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 5V 0.3A 8-Pin MSOP Tube | In den Warenkorb | |
|
|
LTC1475CS8#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 0.3A 8-Pin SOIC N T/R | In den Warenkorb | |
|
|
LTC1475CS8-5#PBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 5V 0.3A 8-Pin SOIC N Tube | In den Warenkorb | |
|
|
LTC1475IS8 | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 0.3A 8-Pin SOIC N | In den Warenkorb | |
|
|
LTC1475CS8-5#TRPBF | Analog Devices | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 3V to 18V Step Down Single-Out 5V 0.3A 8-Pin SOIC N T/R | In den Warenkorb | |
