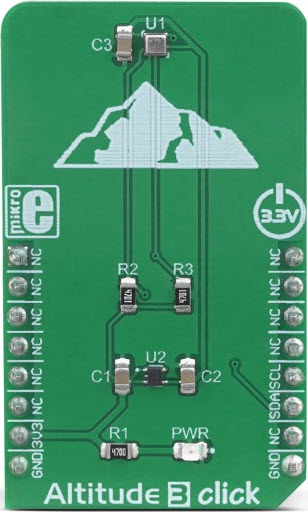

MIKROE-3328, Altitude 3 Click Board based on ICP-10100 High Accuracy, Low Power, Water Proof Barometric Pressure, Temperature Sensor
Referenzdesign unter Verwendung des Teils ICP-10100 von MikroElektronika
Bilder
1 / 5
Zugehörige Dokumente
Für Endprodukte
- Drones
- Portable Navigation System
- Pressure Sensor
Beschreibung
- MIKROE-3328, Altitude 3 Click allows high-resolution barometric pressure measurement, by utilizing the ICP-10100, an integrated barometric pressure and temperature sensor. Based on the advanced MEMS capacitive sensing technology, it offers an industry-level accuracy and thermal stability. A very high absolute pressure accuracy up to ±1 Pa allows Altitude 3 click to sense very small altitude changes, within the magnitude of about 10 cm. The temperature sensor offers accuracy up to ±0.4 degree-C, in the range from -40 to 85 degree-C. Low power requirements make it a perfect choice for various battery-operated applications
Haupteigenschaften
-
Input Signal Amplitude3.3 V
Empfohlene Bauteile (1)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
ICP-10100 | InvenSense | Specialized Sensors | Barometric Pressure and Temperature Sensor Digital Output 1.8V 10-Pin LGA T/R | In den Warenkorb | |
