TIDA-00127, 30W Ultra Wide Range Power Supply for Protection Relays Reference Design
Referenzdesign unter Verwendung des Teils LMS33460MG/NOPB von Texas Instruments
Bilder
1 / 4
Zugehörige Dokumente
Für Endprodukte
- Glass Break Detector
Beschreibung

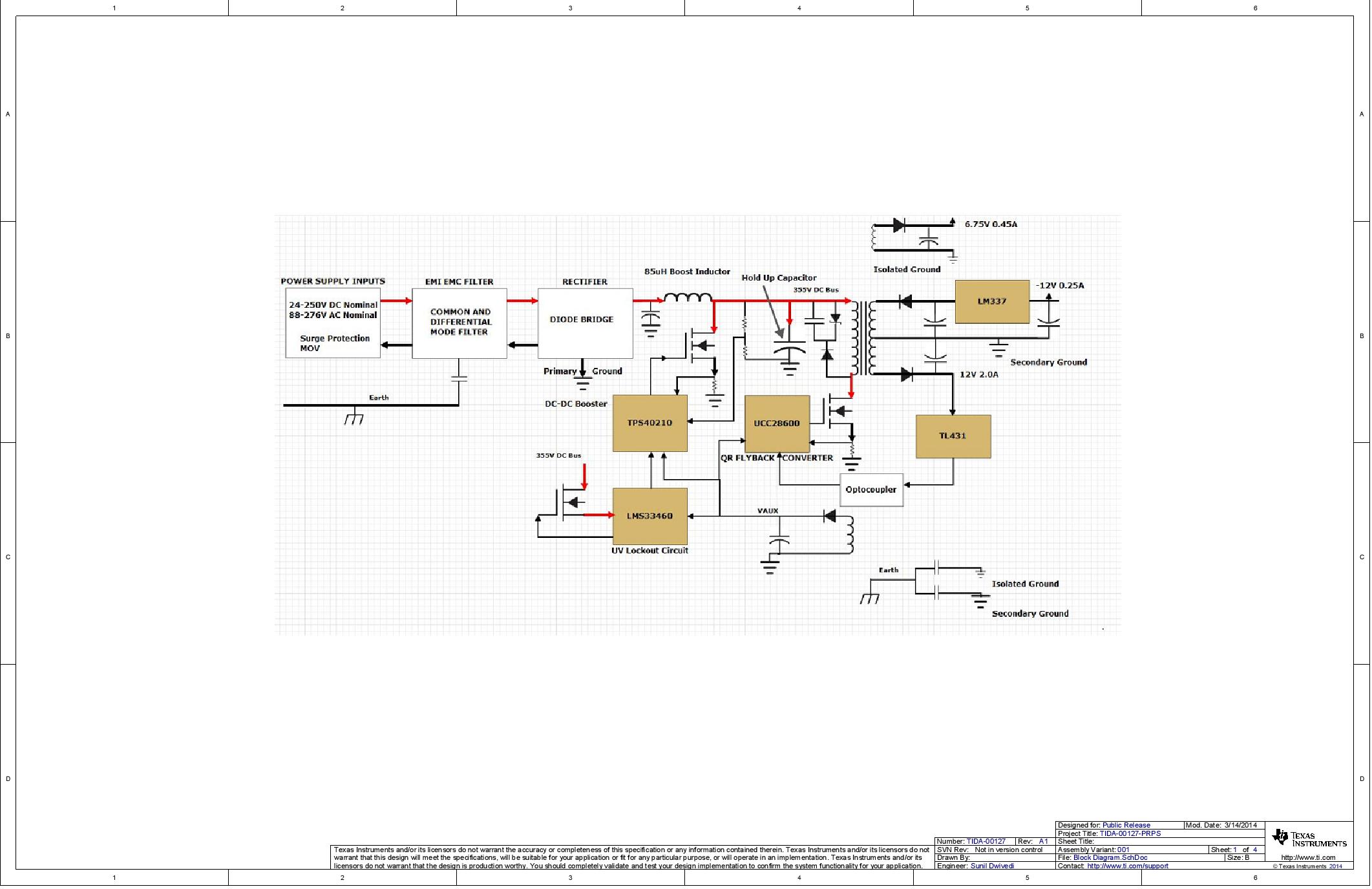

- TIDA-00127, 30W Ultra Wide Range Power Supply for Protection Relays Reference Design. This power supply solution for Protection Relays handles an ultra-wide range of both (88-276V AC) and DC (24-250V DC) inputs making it a suitable platform to power a variety of Protection Relays. The power supply is designed to output industry standard voltages (such as 12V and isolated 6.75V) required in many Protection Relays while also providing excellent line and load regulation (< 3%). This solution has been engineered for high wattage (30W) with good efficiency (up to 78%) and has also been pre-compliance tested for IEC61000-4 (EFT and Surge) and CISPR 11 Class A (Interference)
Empfohlene Bauteile (8)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
UCC28600DR | Texas Instruments | AC to DC Switching Converters | AC to DC Switching Converter Flyback T/R 8-Pin SOIC | In den Warenkorb | |
|
LTV-817A | Lite-On Technology | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP | In den Warenkorb | |
|
LM337KVURG3 | Texas Instruments | Linear Regulators | Standard Regulator Neg -1.2V to -37V 1.5A 3-Pin(2+Tab) TO-252 T/R | In den Warenkorb | |
|
TL431AIDBZT | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
TPS40210 | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | In den Warenkorb | |
|
|
TPS40210DGQ | Texas Instruments | DC to DC Controllers | DC/DC Cntrlr Single-OUT Step Up 1000kHz 10-Pin HVSSOP EP Tube | In den Warenkorb | |
|
LMS33460MG/NOPB | Texas Instruments | Supervisory Circuits | Processor Supervisor 3V 1 Active Low/Open Drain 5-Pin SC-70 T/R | In den Warenkorb | |
|
|
LMS33460MG/NOPB | Texas Instruments | Supervisory Circuits | Processor Supervisor 3V 1 Active Low/Open Drain 5-Pin SC-70 T/R | In den Warenkorb | |
