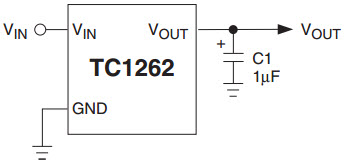

Typical Application for TC1262 500mA Fixed Output CMOS LDO
Referenzdesign unter Verwendung des Teils TC1262 von Microchip Technology
Bilder
1 / 1
Für Endprodukte
- Battery Powered Systems
- Cellular Phone
- Compact SMPS
- Medical Instruments
- Pager
- Portable Computers
- Portable Instrumentation
- Post-Regulators
Beschreibung
- Typical Application for TC1262 500mA Fixed Output CMOS LDO. The TC1262 is a fixed output, high accuracy (typically ±0.5%) CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1262's CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80¿A at full load (20 to 60 times lower than in bipolar regulators)
Haupteigenschaften
-
Conversion TypeDC to DC
-
TopologyLDO
Empfohlene Bauteile (20)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TC1262-3.3VDBTR | Microchip Technology | Linear Regulators | LDO Regulator Pos 3.3V 0.5A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 T/R | In den Warenkorb | |
|
TC1262-3.0VAB | Microchip Technology | Linear Regulators | LDO Regulator Pos 3V 0.5A Automotive AEC-Q100 3-Pin(3+Tab) TO-220 Tube | In den Warenkorb | |
|
|
TC1262-2.8VDB | Microchip Technology | Linear Regulators | LDO Regulator Pos 2.8V 0.5A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 Tube | In den Warenkorb | |
|
|
TC1262-5.0VAB | Microchip Technology | Linear Regulators | LDO Regulator Pos 5V 0.5A Automotive AEC-Q100 3-Pin(3+Tab) TO-220 Tube | In den Warenkorb | |
|
|
TC1262-3.0VDBTR | Microchip Technology | Linear Regulators | LDO Regulator Pos 3V 0.5A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 T/R | In den Warenkorb | |
|
|
TC1262-3.0VDB | Microchip Technology | Linear Regulators | LDO Regulator Pos 3V 0.5A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 Tube | In den Warenkorb | |
|
TC1262-3.3VEBTR | Microchip Technology | Linear Regulators | LDO Regulator Pos 3.3V 0.5A Automotive AEC-Q100 4-Pin(3+Tab) DDPAK T/R | In den Warenkorb | |
|
|
TC1262-3.3VDB | Microchip Technology | Linear Regulators | LDO Regulator Pos 3.3V 0.5A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 Tube | In den Warenkorb | |
|
|
TC1262-3.3VAB | Microchip Technology | Linear Regulators | LDO Regulator Pos 3.3V 0.5A Automotive AEC-Q100 3-Pin(3+Tab) TO-220 Tube | In den Warenkorb | |
|
|
TC1262-3.0VEBTR | Microchip Technology | Linear Regulators | LDO Regulator Pos 3V 0.5A Automotive AEC-Q100 4-Pin(3+Tab) DDPAK T/R | In den Warenkorb | |
|
|
TC1262-5.0VDB | Microchip Technology | Linear Regulators | LDO Regulator Pos 5V 0.5A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 Tube | In den Warenkorb | |
|
|
TC1262-2.8VDBTR | Microchip Technology | Linear Regulators | LDO Regulator Pos 2.8V 0.5A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 T/R | In den Warenkorb | |
