The Energy Harvesting Bluetooth® Low Energy Switch is a complete reference design for energy harvesting applications including lighting, door and window control, and step counters. Featuring the RSL10 SIP and high-efficiency harvester switch from ZF Electronic, the battery-less switch offers very low power consumption and is entirely self-powered.

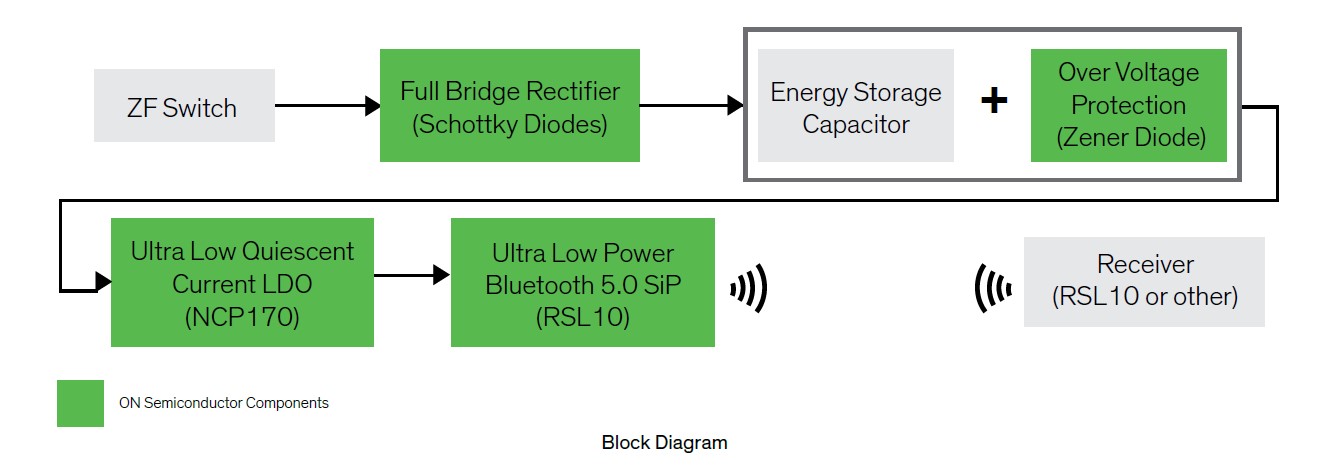

A low-loss Schottky Diode bridge rectifier and electrolytic capacitor are enough to provide power from the switch to the RSL10 SIP Bluetooth 5 device. By combining the ultra-low power technology from RSL10 SIP with the ZF energy harvesting switch, this reference design is a good starting point for battery-less applications.
The source code included provides a platform from which to develop application code, and the documentation includes detailed explanations of how to customize the firmware and connect the reference design to a Bluetooth Low Energy scanner application running on a smart phone or tablet.
Read more: Download the product brief to learn about features of the board and how the Energy
Harvesting technology works
